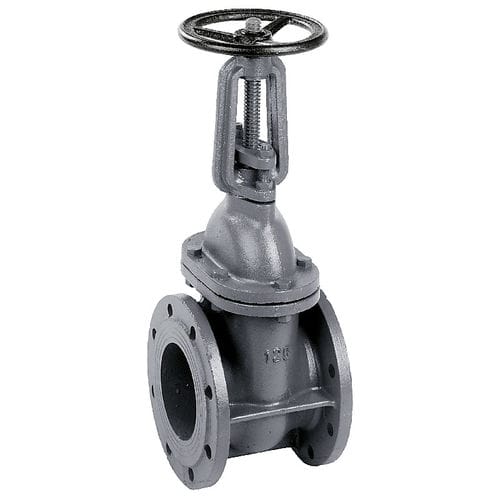

Gate valve 15 serieswith handwheelflangestainless steel
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Body
- flange, stainless steel, brass, cast iron
- Applications
- HVAC
- Other characteristics
- standard
- DN
Min.: 40 mm
(1.575 in)Max.: 300 mm
(11.811 in)- Pressure
8 bar, 10 bar
(116 psi, 145 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 150 °C
(302 °F)- Flow rate
Min.: 140 m³/h
(4,944.05 ft³/h)Max.: 6,380 m³/h
(225,307.57 ft³/h)
Description
Gate valves, Gate valve flat body F4, Gate valves flat body F4 on cast iron PN 10/16 (EN-GJL-250)
The flat body gate valve has a cast iron body, handwheel, wedge and yoke. The stem and seats have been constructed from brass with AISI 304 stainless steel sealing for the seats and AISI 420 stainless steel for the stem. The device operates at a maximum working temperature of 80 degrees C with standard gaskets.
