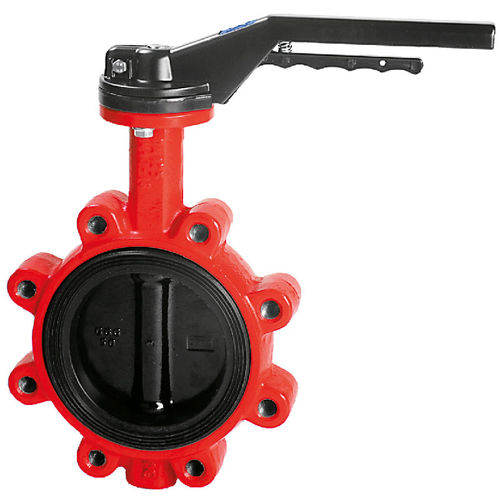

Butterfly valve 124 leverthreadedlug type
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Body
- threaded, lug type, coated, stainless steel, cast iron, aluminum
- Applications
- HVAC
- DN
Min.: 40 mm
(1.575 in)Max.: 400 mm
(15.748 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 95 °C
(203 °F)- Flow rate
Min.: 131 m³/h
(4,626.22 ft³/h)Max.: 13,053 m³/h
(460,962.34 ft³/h)
Description
Butterfly valves, Butterfly valves lug type, Butterfly valves lug type on nodular cast iron PN 16 (EN-GJS-400-15)
This butterfly valve's nodular cast iron body and butterfly have a polyester coating with a stainless steel stem. The lever of the unit is coated with aluminum and it comes with an EDPM liner.
This valve is designed for use as an end-line valve with a maximum working pressure of 5 bar for valves ranging from DN 50 to DN 150 and a maximum of 3 bar for valves ranging from DN 200 to DN 400.
Valves over DN 200 are provided as standard by gearbox and threaded fins are suitable for assembly between flanges UNI NP16-10
