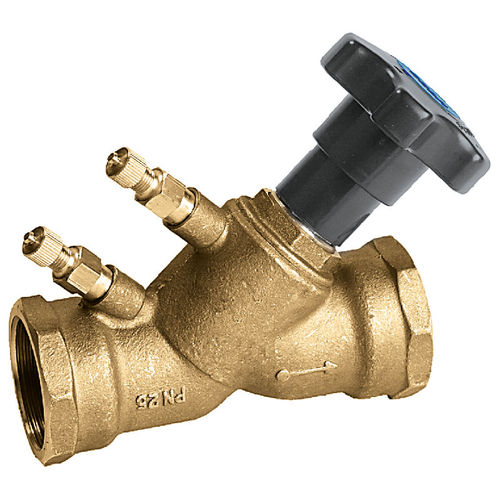

balancing valve / disc / with handwheel / bronze
616 series

{{requestButtons}}

Characteristics

  • Type:

    disc

  • Operation:

    with handwheel

  • Body:

    female-female, Y, bronze

  • Applications:

    HVAC

  • Other characteristics:

    balancing

  • Temperature:

    Max.: 130 °C (266 °F)

    Min.: -10 °C (14 °F)

  • Pressure:

    25 bar (362.6 psi)

  • DN:

    Max.: 50 mm

    Min.: 15 mm

Description

Offering solutions for a varied range of application requirements, the bronze balancing valves must be opened completely to ensure the valves are fitted properly at the pipeline. To obtain maximum performance from the valves, the body and its threaded parts must be clean and free of impurities. To clean the valves efficiency, you can use compressed air. Use the valves carefully because too much force could destroy the couplings and cause the valve to break. However, you can use a wrench to screw and tighten the valve and for sealing purposes, you can use PTFE or hempen tape as they will not react with the fluid.
