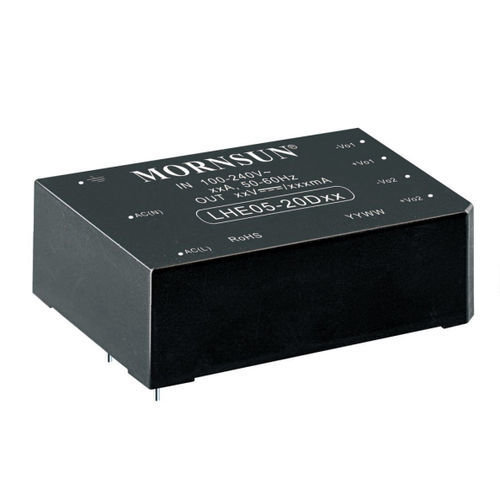

Encapsulated power supply LHE05-20A/C/Dxx series
AC/DCregulateddual-output

Encapsulated power supply - LHE05-20A/C/Dxx series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - AC/DC / regulated / dual-output
Encapsulated power supply - LHE05-20A/C/Dxx series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - AC/DC / regulated / dual-output
Encapsulated power supply - LHE05-20A/C/Dxx series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - AC/DC / regulated / dual-output - image - 2
Encapsulated power supply - LHE05-20A/C/Dxx series - MORNSUN Guangzhou Science & Technology Co.,Ltd. - AC/DC / regulated / dual-output - image - 3
Add to favorites
Compare this product

Characteristics

Mounting / format
encapsulated
Type
AC/DC
Output
regulated, dual-output
Protection
with short-circuit protection
Certifications
CE, RoHS
Applications
for industrial applications
Other characteristics
compact
Input voltage

Min.: 85 V

Max.: 370 V

Output voltage

Min.: -15 V

Max.: 15 V

Current

Min.: 80 mA

Max.: 800 mA

Power

5 W, 5.4 W

Description

LHE05-20A/C/Dxx series -----a compact size multipath output power converter offered by Mornsun. It features universal input voltage, takingboth DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMCperformance, and it’s widely used in industrial, office and civil applications. For harsh EMC environment, the application circuit in the datasheet is strongly recommended FEATURES  Universal Input : 85 - 264VAC/100 - 370VDC  Operating temperature range: -30℃to+70℃  High isolation voltage up to 4K VAC  Regulated output, Low ripple & noise  Output short circuit, over-current, over-voltageprotection  High efficiency, high reliability  Plastic case, meets UL94V-0  EMI performance meets CISPR32 / EN55032 CLASSB
