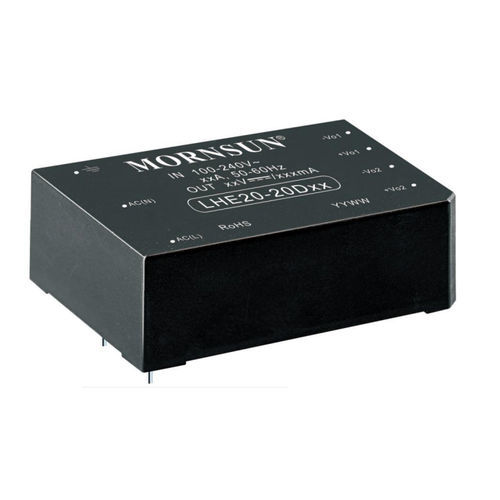

AC/DC power supply LHE20-20A/C/Dxx Series
regulateddual-outputwith short-circuit protection

AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
regulated, dual-output
Other characteristics
with short-circuit protection, with overcurrent protection, with plastic housing, high I/O isolation, compact
Power

20 W

Input voltage

Min.: 85 V

Max.: 264 V

Output voltage

Min.: 12 V

Max.: 24 V

Current

Min.: 300 A

Max.: 830 A

Description

FEATURES  Universal 85 - 264VAC and wide 100 - 370VDC Input  Operating ambient temperature range -40℃ ~ +70℃  High I/O isolation test voltage of up to 4000VAC  Regulated output, low ripple & noise  Output short circuit, over-current, over-voltage protection  High efficiency, high reliability  Plastic case meets flammability per UL94V-0  EMC compliant to CISPR32 / EN55032 CLASS B RoHS LHE20-20A/C/Dxx series is one of Mornsun’s compact size multiple output power converters. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability and reinforced insulation. It offers good EMC performance and is widely used in industrial and office applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet
