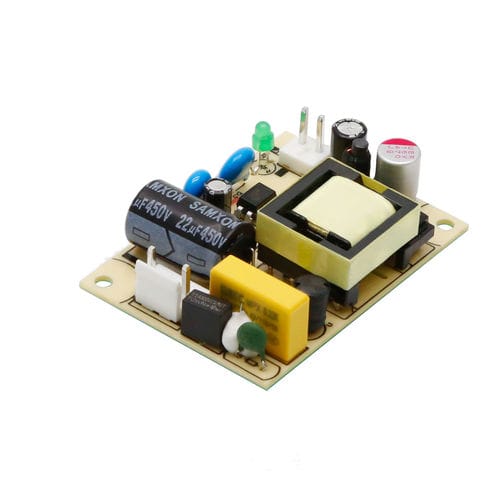

Industrial AC-DC converter LO10-13Bxx
compact

industrial AC-DC converter
industrial AC-DC converter
Add to favorites
Compare this product


Characteristics

Other characteristics
industrial, compact
Power

6.6 W, 10 W

Current

Min.: 450 mA

Max.: 2,000 mA

Voltage

Min.: 3 V

Max.: 24 V

Description

FEATURES Universal 85-305VAC or 100-430VDC input voltage Operating ambient temperature range -25℃ to +70℃ Output short circuit, over-current & over-voltage protection High efficiency, high reliability Regulated output, low ripple & noise EMI performance meets CISPR32/EN55032 CLASS B 2 years warranty Designed to meet UL/EN/IEC62368, EN/UL60335 standards LO10-13Bxx series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368, EN/UL60335 standards. The converters are widely used in industrial, office and civil applications.
