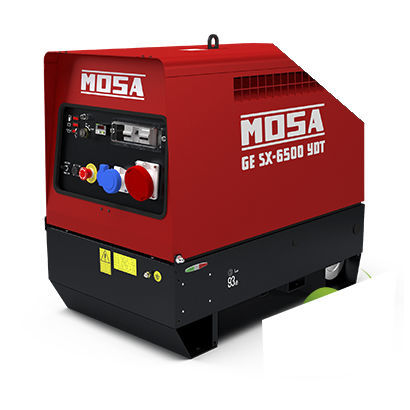

Diesel generator set GE SX-6500 YDT
three-phasesingle-phasestationary

Diesel generator set - GE SX-6500 YDT - MOSA - three-phase / single-phase / stationary
Diesel generator set - GE SX-6500 YDT - MOSA - three-phase / single-phase / stationary
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase, single-phase
Portability
stationary
Frequency
50 Hz
Cooling system
air-cooled
Applications
industrial
Emissions level
Stage V
Power in kVA

3.5 kVA, 5.7 kVA, 6.5 kVA
(4.76 hp, 7.75 hp, 8.84 hp)

Rated capacity

4.6 kW, 5.2 kW
(6.3 hp, 7.1 hp)

Voltage

230 V, 400 V

Rotational speed

3,000 rpm
(18,850 rad.min-1)

Noise level

67 dB, 92 dB

Fuel tank capacity

23 l
(6.1 gal)

Length

1,040 mm
(41 in)

Width

650 mm
(26 in)

Height

911 mm
(35.87 in)

Weight

202 kg
(445.33 lb)

Description

Diesel generating set YANMAR L 100 V - Single-phase synchronous alternator - Air Cooled POWER RATINGS • Stand-By three-phase power: 6.5 kVA (5.2 kW) /400V/ 9.4A • PRP three-phase power: 5.7 kVA (4.6 kW) /400V/ 8.2A • PRP single-phase power: 3.5 kVA/kW /230V/ 15.2A • Frequency: 50 Hz GENERAL SPECIFICATIONS • Fuel tank capacity: 23 lt. • Running time (75% to PRP): 19 h • Measured acoustic power LwA (pressure LpA): 91.6 dB(A) (66.6 dB(A) @ 7m) • Guaranteed acoustic power LwA (pressure LpA): 93 dB(A) (68 dB(A) @ 7m) • Dry Weight: 202 kg • Dimensions (LxWxH): 1040x650x911 mm
