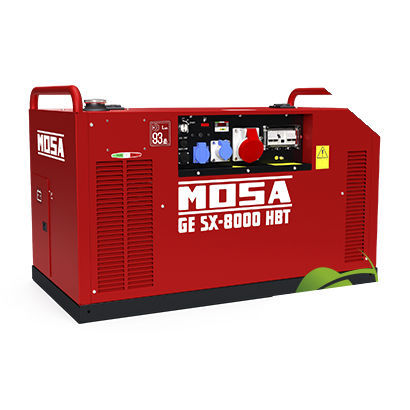

Diesel generator set GE SX-8000 HBT
three-phasesingle-phaseportable

Diesel generator set - GE SX-8000 HBT - MOSA - three-phase / single-phase / portable
Diesel generator set - GE SX-8000 HBT - MOSA - three-phase / single-phase / portable
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase, single-phase
Portability
portable
Frequency
50 Hz
Cooling system
air-cooled
Applications
industrial
Emissions level
Stage V
Power in kVA

3.5 kVA, 7 kVA, 8 kVA
(4.76 hp, 9.52 hp, 10.88 hp)

Rated capacity

6 kW, 6.4 kW
(8.2 hp, 8.7 hp)

Voltage

230 V, 400 V

Rotational speed

3,000 rpm
(18,850 rad.min-1)

Noise level

67 dB, 92 dB

Fuel tank capacity

18 l
(4.8 gal)

Length

1,060 mm
(42 in)

Width

565 mm
(22 in)

Height

665 mm
(26.18 in)

Weight

159 kg
(350.53 lb)

Description

Petrol generating set HONDA iGX 390 - Three-phase synchronous alternator - Air Cooled POWER RATINGS • Stand-By three-phase power: 8 kVA(6.4 kW) / 400V/ 11.5A • PRP three-phase power: 7 kVA(5.6 kW) / 400V/ 10.1A • PRP single-phase power: 3.5 kVA/kW /230V/ 15.2A • Frequency: 50 Hz GENERAL SPECIFICATIONS • Fuel tank capacity: 18 lt. • Running time (75% to PRP): 7.5 h • Measured acoustic power LwA (pressure LpA): 91.5 dB(A) (66.5 dB(A) @ 7m) • Guaranteed acoustic power LwA (pressure LpA): 93 dB(A) (68 dB(A) @ 7m) • Dry Weight: 159 kg • Dimensions (LxWxH): 1060x565x665 mm
