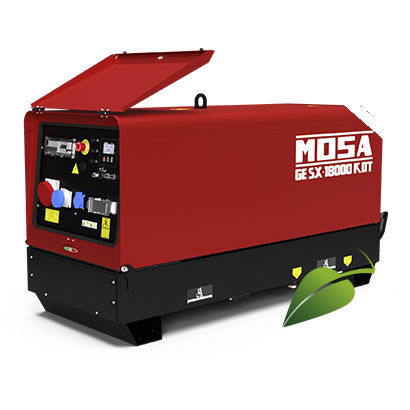

Diesel generator set GE SX-18000 KDT
three-phasesingle-phasestationary

Diesel generator set - GE SX-18000 KDT - MOSA - three-phase / single-phase / stationary
Diesel generator set - GE SX-18000 KDT - MOSA - three-phase / single-phase / stationary
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase, single-phase
Portability
stationary
Frequency
50 Hz
Cooling system
water-cooled
Applications
industrial
Emissions level
Stage V
Power in kVA

9 kVA, 16.5 kVA, 18 kVA
(12.24 hp, 22.43 hp, 24.47 hp)

Rated capacity

13.2 kW, 14.4 kW
(17.9 hp, 19.6 hp)

Voltage

230 V, 400 V

Rotational speed

3,000 rpm
(18,850 rad.min-1)

Noise level

69 dB, 94 dB

Fuel tank capacity

38 l
(10 gal)

Length

1,650 mm
(65 in)

Width

710 mm
(28 in)

Height

931 mm
(36.65 in)

Weight

370 kg
(815.71 lb)

Description

Diesel generating set KOHLER KDW1003 - Three-phase synchronous alternator - Water Cooled POWER RATINGS • Stand-By three-phase power: 18 kVA (14.4 kW) / 400V/ 26A • PRP three-phase power: 16.5 kVA (13.2 kW) / 400V / 23.8A • PRP single-phase power: 9 kVA/kW / 230V / 39.1A • Frequency: 50 Hz GENERAL SPECIFICATIONS • Fuel tank capacity: 38 lt. • Running time (75% to PRP): 10.5 h • Measured acoustic power LwA (pressure LpA): 94 dB(A) (69 dB(A) @ 7m) • Guaranteed acoustic power LwA (pressure LpA): 93 dB(A) (68 dB(A) @ 7m) • Dry Weight: 370 kg • Dimensions (LxWxH): 1650x710x931 mm
