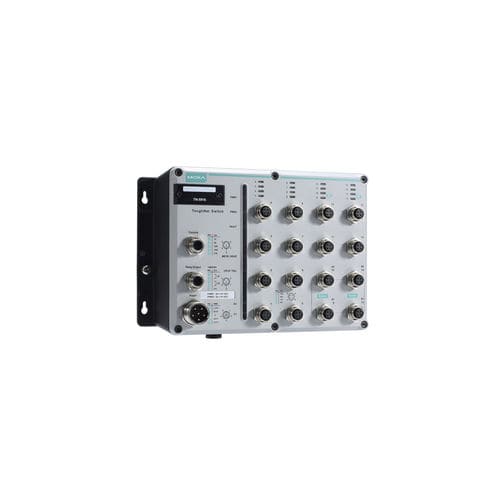

Managed ethernet switch TN-5916 series

24 ports

Designed for rolling stock backbone networks • Dual bypass relay • Isolated power input range from 24 to 110 VDC • Compliant with essential sections of EN 50155 • -40 to 75°C operating temperature range • Turbo Ring and RSTP/STP for network redundancy Introduction The ToughNet TN-5916, designed for rolling stock backbone networks, is a high performance M12 router with four bypass relay backbone ports. It supports NAT and routing functionality to facilitate the deployment of applications across networks. The TN-5916 router uses M12 and other circular connectors to ensure tight, robust connections and guarantee reliable reslience against environmental disturbances, such as vibration and shock. The TN-5916 router provides a wide power input range of 12/24/36/48 VDC, 72/96/110 VDC, or 110/220 VDC. The TN-5916 operates in an extended operating temperature range of -40 to 75°C and is compliant with EN 50155/50121-4 requirements, making the router suitable for a variety of industrial applications.
