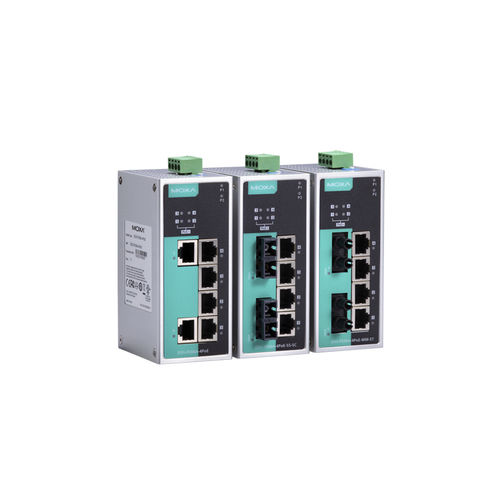

Unmanaged switch EDS-P206A

6 portsPoEredundant

IEEE 802.3af/at compliant PoE and Ethernet combo ports Up to 30 watts per PoE port 24/48 VDC wide range redundant power inputs Intelligent power consumption detection and classification Redundant dual VDC power inputs -40 to 75°C operating temperature range (T models) Introduction Download Industrial PoE Application PortfolioThe EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. The switches can be used to power IEEE 802.3af/at compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
