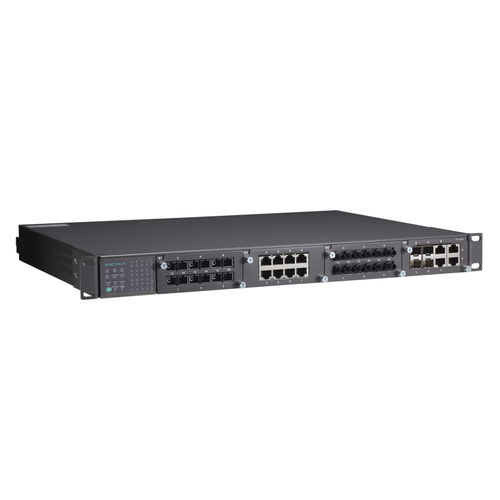

Managed switch PT-7828 series

24 portslayer 3

General Features and Benefits Substation Reference Book Layer 3 switching functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks Command Line Interface (CLI) for quickly configuring major managed functions Software-based IEEE 1588v2 PTP (Precision Time Protocol) for precise time synchronization of networks DHCP Option 82 for IP address assignment with different policies EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy Supports multicast routing protocols PIM-DM/DVMRP Supports advanced VLAN capability with Q-in-Q tagging IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols IEEE 802.3ad, LACP for optimum bandwidth utilization Bandwidth management prevents unpredictable network status Multi-port mirroring for online debugging Automatic warning by exception through email, relay output RMON for efficient network monitoring and proactive capability Automatic recovery of connected device’s IP addresses Line-swap fast recovery Configurable by Web browser, Telnet/Serial console, CLI Windows utility, and ABC-01 automatic backup configurator
