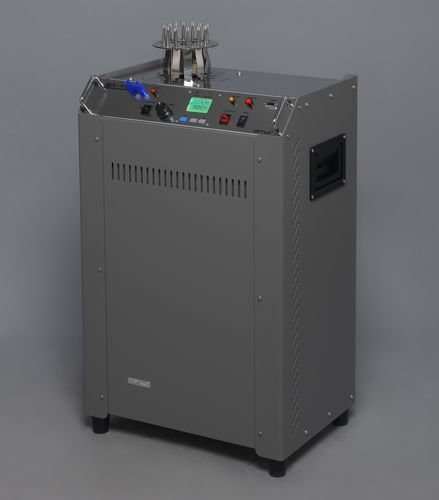

High-precision calibration bath TL-1010N

portable

The TL-1010N is a compact, portable, and cost-effective universal constant temperature bath specifically designed for mobile metrology applications. This unit can be easily transported in a small sedan, featuring a workspace with a diameter of 138 mm (5.4 inches) and a depth of 400 mm (15.7 inches), while delivering high-precision temperature control performance. It incorporates MPTest's proprietary jet stirring technology, ensuring quiet operation, low vibration, and energy efficiency, with a temperature stability of ±0.002°C. The unit is equipped with MPTest's unique three-button LCD temperature controller for simple and practical operation. The use of antifreeze as the medium is recommended, enabling an operating temperature range from -10°C (14°F) to 100°C (212°F). The included transit case not only protects the instrument during transportation but also serves as a temporary bench stand for instrument placement. - Operating Temperature: Antifreeze: -10 ℃ to 100 ℃ (14°F to 212°F) - Working Area: Diameter 138mm (5.4"), Depth 400mm (15.7") - Wetted Parts: 304 stainless steel - Liquid Volume: Approximately 10 liters (2.64 gal) - Stirring Method: Jet stirring, three-speed adjustable - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.002 ℃ /10min at 0 ℃ (32°F), ±0.005 ℃ /10min at 90 ℃ (194°F) - Temperature Uniformity: ±0.004 ℃ at 0 ℃ (32°F), ±0.010 ℃ at 90 ℃ (194°F) - Heating Time: 40 minutes from 25°C(77°F) to 90°C(194°F) - Cooling Time: 150 minutes from 25°C(77°F) to 0°C(32°F) - Operating Voltage: 110VAC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 1200W - Dimensions: 408mm (16.1") x 280mm (11") x 558mm (22") - Net Weight: Approximately 33 kg (72.7 lb)
