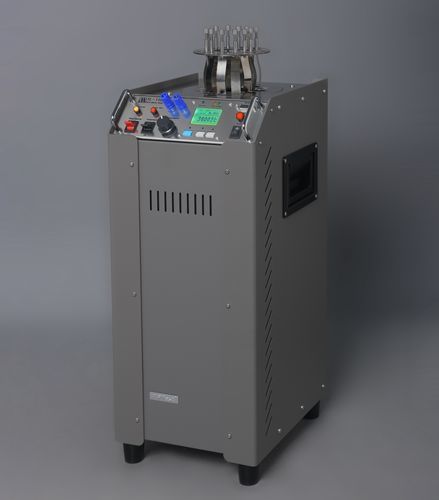

Low-temperature calibration bath TL-1105

for thermometersportablehigh-precision

This is a more compactly designed constant temperature bath, weighing approximately 19.5 kg (43 lbs), with a temperature range of -10°C (14°F) to 102°C (215.6°F). It is recommended to use antifreeze for operation. The bath features an inner diameter of 138 mm (5.43 inches) and a depth of 265 mm (10.43 inches), achieving a temperature stability of ±0.003°C per 10 minutes. Designed for mobile metrology applications, it is lightweight enough for one person to easily transport and deploy at work sites. The bath utilizes MPtest's jet-stream mixing technology to achieve miniaturization while maintaining low vibration and quiet operation, making it particularly suitable for the calibration of short-stem thermometers. It also includes an instrument transport case that doubles as a temporary bench for field use. - Operating Temperature: Antifreeze: -10 ℃ to 100 ℃ (14°F to 212°F) - Working Area: Diameter 138mm (5.4"), Depth 265mm (10.4") - Wetted Parts: 304 stainless steel - Liquid Volume: Approximately 7 liters (1.85 gal) - Stirring Method: Jet stirring, three-speed adjustable - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.003 ℃ /10min at 0 ℃ (32°F); ±0.005 ℃ /10min at 90 ℃ (194°F) - Temperature Uniformity: ±0.004 ℃ at 0 ℃ (32°F); ±0.010 ℃ at 90 ℃ (194°F) - Heating Time: 60 minutes from 25°C(77°F) to 90°C(194°F) - Cooling Time: 90 minutes from 25°C(77°F) to 0°C(32°F) - Operating Voltage: 110VAC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 800W - Dimensions: 228mm (9") x 258mm (10.2") x 520mm (20.5") - Net Weight: Approximately 19.5 kg (43 lb)
