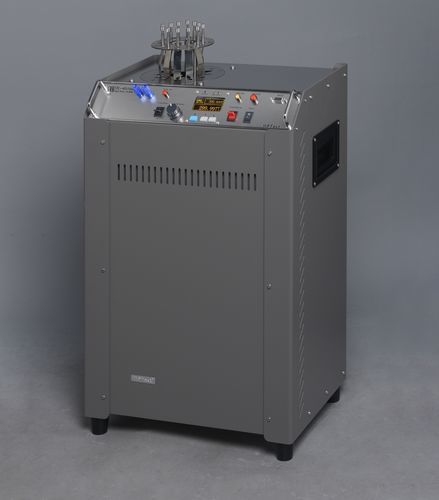

High-temperature calibration bath TL-8310A

low-temperatureportablehigh-precision

The TL-8310A is a portable thermostatic oil bath designed for mobile metrology applications. It operates over a temperature range of 50°C to 300°C (122°F to 572°F) and delivers temperature stability of ±0.010°C per 10-minute period. The bath features a workspace depth of 380 mm (14.96 inches), with silicone oil recommended as the working fluid. Equipped with a high-capacity air-cooling system for rapid cooldown, the unit incorporates a low-fume design and supports an optional exhaust fan to minimize vapor emissions in the working environment. A transport case is provided, which also serves as a temporary bench stand for field operations. - Operating Temperature: Methyl Silicone Oil(50cst): 80 ℃ to 300 ℃ (176°F to 572°F) - Working Area: Diameter 125mm (4.9"), Depth 380mm (15") - Wetted Parts: 304 stainless steel - Liquid Volume: Approximately 10 liters (2.64 gal) - Stirring Method: Jet stirring, three-speed adjustable - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.003 ℃ /10min at 100 ℃ (212°F); ±0.007 ℃ /10min at 300 ℃ (572°F) - Temperature Uniformity: ±0.005 ℃ at 100 ℃ (212°F); ±0.010 ℃ at 300 ℃ (572°F) - Heating Time: 120 minutes from 50°C(122°F) to 300°C(572°F) - Cooling Time: 90 minutes from 300°C(572°F) to 60°C(140°F) - Operating Voltage: 110VAC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 1500W - Dimensions: 408mm (16.1") x 280mm (11") x 635mm (25") - Net Weight: Approximately 35 kg (77.2 lb)
