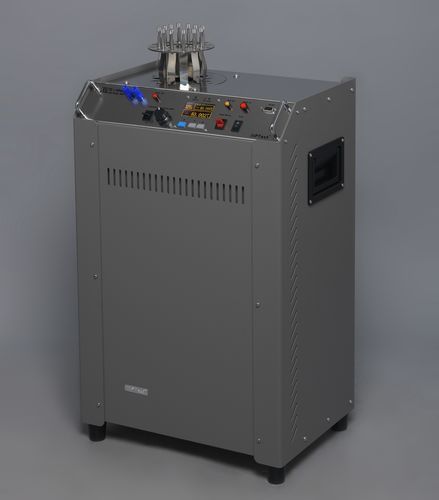

Low-temperature calibration bath TL-1040A

high-precisionportable

The TL-1040A is a precision constant temperature bath optimized for low-temperature applications. Using alcohol as the medium, it operates over a temperature range of -40°C (-40°F) to 50°C (122°F). The bath incorporates MPTest's proprietary rapid refrigeration technology, enabling it to cool from 40°C (104°F) to -40°C (-40°F) in just 90 minutes. Designed for mobile metrology, the unit is compact and portable while maintaining temperature stability within ±0.002°C. A dedicated transport case is included, which also serves as a temporary bench stand for field use. - Operating Temperature: Alcohol: -40 ℃ to 50 ℃ (-40°F to 122°F) - Working Area: Diameter 138mm (5.4"), Depth 380mm (15") - Wetted Parts: 304 stainless steel - Liquid Volume: Approximately 10 liters (2.64 gal) - Stirring Method: Jet stirring, three-speed adjustable - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.002 ℃ /10min at 0 ℃ (32°F); ±0.003 ℃ /10min at -40 ℃ (-40°F) - Temperature Uniformity: ±0.005 ℃ at 0 ℃ (32°F); ±0.005 ℃ at -40 ℃ (-40°F) - Heating Time: 15 minutes from 25°C(77°F) to 40°C(104°F) - Cooling Time: 60 minutes from 25°C(77°F) to -40°C(-40°F) - Operating Voltage: 110VAC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 1600W - Dimensions: 408mm (16.1") x 280mm (11") x 635mm (25") - Net Weight: Approximately 40 kg (88.2 lb)
