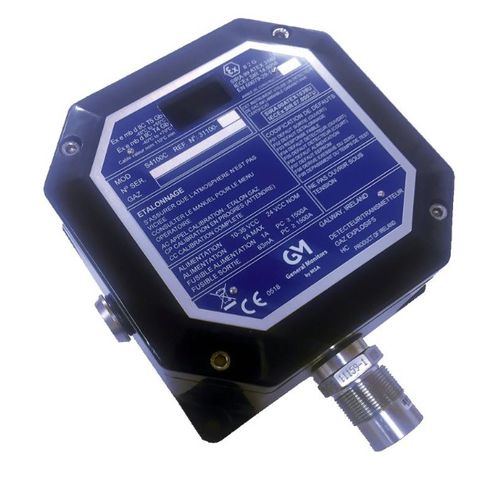

Gas detector S4100C
for LPGModbusremote

gas detector
gas detector
Add to favorites
Compare this product


Characteristics

Detected entity
gas
Gas type
for LPG
Other characteristics
Modbus, remote, LEL
Application
calibration

Description

The S4100C Intelligent Sensor is a self-contained microprocessor-based transmitter with integral three-digit readout. It is designed to measure and display concentrations of combustible gases in the 0-100% LEL range, but will continue to display concentrations up to 120% LEL. The sensing element may be incorporated in the transmitter housing or remotely mounted at distances up to 620 meters. The S4100C records the number of successful calibrations, computes the sensor output in mV during calibration and stores in non-volatile memory. •EExe (increased safety) approval provides high level of water ingress protection for harsh environments •10-35 VDC operation allows longer cable runs and lower cost installation •Selectable calibration gas level with non-standard gas concentrations possible •Three (3) digit LED displays up to 120% LEL and alarm status •Fully adjustable alarm levels with open collector outputs lower wiring costs and allows for flexible operation •Industry standard 4-20 mA output for remote alarm and fault indication •RS-485 Dual Modbus Serial Output, in addition to 4-20mA, provides measurement, setup and status of up to 247 nodes Markets: General Industry, Oil & Gas, Utilities Applications • Refineries • Drilling and production platforms • Fuel loading facilities • Compressor stations • Oil well logging • LNG/LPG processing andstorage facilities • Wastewater treatment facilities • Gas turbines (remote high temperature sensor approved to 180° C) • Solvent vapours • Chemical plants Features & Benefits • RS-485 dual Modbus serial output in addition to 4 – 20 mA provides measurement, setup and status of up to 247 nodes
