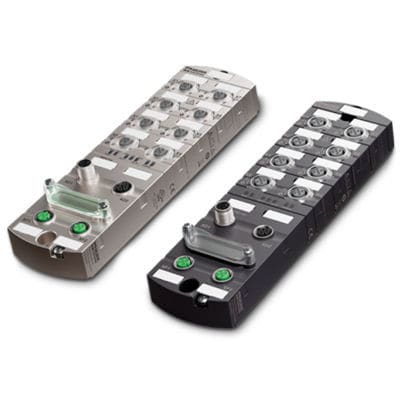

Digital I/O module MVK Pro

analogEtherNet/IPFieldbus

Compact IO-Link master modules with eight multifunctional master ports are the most intelligent way to connect IO-Link devices. IP67 rated fieldbus modules are an important component in decentralized instal­lations. They replace complexly wired and expensive terminal boxes. Combine these modules with our selection of IO-Link hubs and analog converters to increase your flexibility while minimizing hardware costs. In addition to pure process data (I/Os), the new Pro modules also provide secondary extended diagnostic data (voltage, current and temperature values) for both the respective ports and the entire module. This allows anomalies to be detected and the actual process to be optimized via data analysis. With the help of OPC UA, this can be done completely without a controller using a standard protocol. The most flexible port ever - 1O-Link Class A/B master port 8 x multifunctional 1O-Link Class A/B master ports with true DIO functionality ■ One module for everything: Each port can be used as input or output for IO-Link, digital or analog* signals ■ Intelligent supply voltage switching at pin 2 and 4 - actuator supply for DOs and sensor supply for Dis ■ Up to 4A per port (up to 2 A each at pin 2 and 4) * via IO-Link analog converter Global deployment - guaranteed ■ 2 x M12 D-coded, 100 Mbps. ■ PROFINET, EtherNet/IP, EtherCAT ■ Rotary coding switch (for configuration) ■ Automated, network-wide firmware updates via Murrelektronik's AutoUpdateX tool ■ 10-Link master with OPC UA server - from the sensor to the cloud
