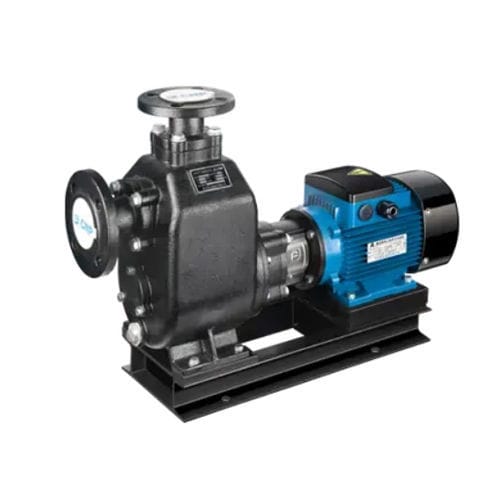

Wastewater pump ZWelectricself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- for wastewater
- Operation
- electric
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- for industrial applications, drainage
- Other characteristics
- compact, high-performance
- Flow
Max.: 26 m³/h
(918.18133 ft³/h)Min.: 7 m³/h
(247.20267 ft³/h)- Head
Max.: 27 m
(88'06" )Min.: 10 m
(32'09" )- Power
Max.: 3 kW
(4.08 hp)Min.: 2.2 kW
(2.99 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)
Description
ZW non-clogging self-priming sewage pump is a newly developed product with novel structure.
The pump adopts external mixing type and sleeve shaft structure, which has the characteristics of simple structure, good self-priming performance, strong sewage discharge capacity and so on.
The products can be widely used in municipal sewage discharge, river pond breeding, light industry, papermaking, fiber and mixed suspension and other working conditions.
Working condition
- Liquid density: <1.2*103 kg/ m3
- Self-priming height: Should not exceed the self-priming height specified by the pump, the total length of the suction pipeline should not exceed 10 meters.
- Passing capacity: The suspended particle diameter can not exceed 60% of the pump diameter, and fiber can not exceed 5 times bigger than the pump diameter.
TECHNICAL DATA
Frequency: 50Hz
APPLICATIONS
Sewage treatment
Industrial water treatment
