- Nanjing Genvan Intelligent Equipment Co. Ltd.

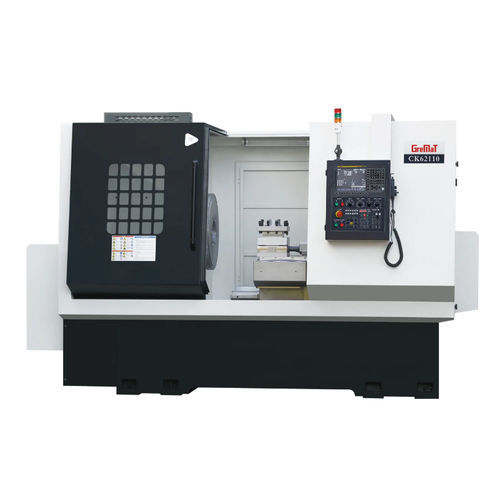

CNC turning center CK62110 2-axis4 toolsfor large-diameter parts
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 4 tools
- Applications
- for large-diameter parts
- Diameter
400 mm, 1,100 mm
(15.75 in, 43.31 in)- Spindle speed
800 rpm, 1,600 rpm
(5,026.548 rad.min-1, 10,053.096 rad.min-1)- Maximum part length
400 mm
(16 in)- Axe X
320 mm
(13 in)- Axe Z
400 mm
(16 in)- Rapids on X
6 m/min
- Rapids on Z
9 m/min
- Nominal power
5.5 kW, 7.5 kW
(7.5 hp, 10.2 hp)- Overall lenght
2,100 mm
(83 in)- Overall width
1,350 mm
(53 in)- Overall height
1,800 mm
(71 in)- Weight
2,300 kg
(5,071 lb)
Description
Extra-swing turning lathe for extra big diameter parts machining. More over, the machine bed is specially designed with rack and gear pair, which can move forward and backward manually for adapting different jobs' length.
Capacity
Chuck size - inch - Manual 10,*12,*15
Max. length in the gap - mm - 250
Spindle
Spindle bore - mm - Ø55,*Ø81,*Ø105
Turret
Guideway - Guideway type - Hard
