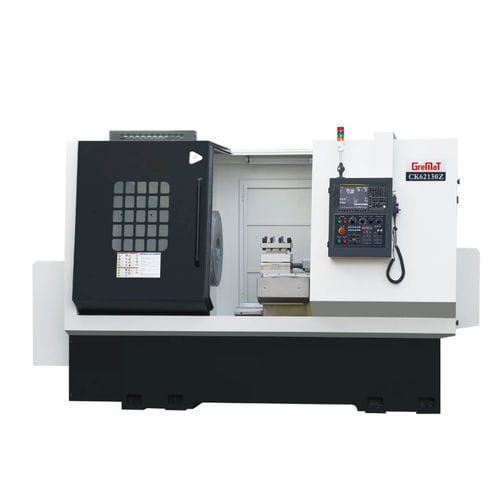

CNC turning center CK62130Z
2-axis4 toolsfor large-diameter parts

CNC turning center - CK62130Z - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / 4 tools / for large-diameter parts
CNC turning center - CK62130Z - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / 4 tools / for large-diameter parts
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Number of tool stations
4 tools
Applications
for large-diameter parts
Diameter

600 mm, 1,300 mm
(23.62 in, 51.18 in)

Spindle speed

500 rpm
(3,141.593 rad.min-1)

Maximum part length

350 mm
(14 in)

Axe X

580 mm
(23 in)

Axe Z

350 mm
(14 in)

Rapids on X

15 m/min

Rapids on Z

15 m/min

Nominal power

11 kW
(15 hp)

Overall lenght

2,500 mm
(98 in)

Overall width

1,650 mm
(65 in)

Overall height

2,000 mm
(79 in)

Weight

4,500 kg
(9,921 lb)

Description

Extra-swing turning lathe for extra big diameter parts machining. More over, the machine bed is specially designed with rack and gear pair, which can move forward and backward manually for adapting different jobs' length. Capacity Chuck size - inch - Manual 18 Max. length in the gap - mm - 450 Spindle Spindle bore - mm - Ø135 Guideway Guideway type - Roller Linear Motion
