CNC turning center FL300-MT
2-axisA2-510 tools

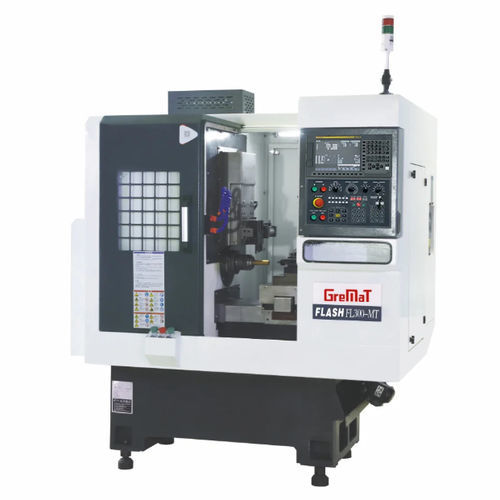

CNC turning center - FL300-MT - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-5 / 10 tools
CNC turning center - FL300-MT - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-5 / 10 tools
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Spindle mount
A2-5
Number of tool stations
10 tools, 4 tools
Associated function
milling, drilling, tapping
Diameter

135 mm, 300 mm
(5.31 in, 11.81 in)

Spindle speed

2,500 rpm, 3,000 rpm, 4,500 rpm, 5,000 rpm
(15,707.963 rad.min-1, 18,849.556 rad.min-1, 28,274.334 rad.min-1, 31,415.927 rad.min-1)

Maximum part length

300 mm
(12 in)

Axe X

350 mm
(14 in)

Axe Z

300 mm
(12 in)

Rapids on X

25 m/min

Rapids on Z

25 m/min

Nominal power

3.7 kW, 5.5 kW, 7.5 kW
(5 hp, 7.5 hp, 10.2 hp)

Overall lenght

1,700 mm
(67 in)

Overall width

1,200 mm
(47 in)

Overall height

1,550 mm
(61 in)

Weight

1,800 kg
(3,968 lb)

Description

PLUS, an extra-long work table provides a large tool mounting area. This allows for a large number and variety of table mounted tooling options. This capacity makes the Series a powerful, “single set-up” turning center for turning, milling, tapping and drilling operations in a single part production cycle. Smart operators can combine operations into a single machining center – saving on capital input and operating costs. The series machine owners report they have gained a competitive advantage with the addition of these machines to their production system. Capacity Chuck/collet - Hydraulic collet Bed type/guideway - Flat/LM Spindle Spindle bore - mm - Ø48, *Ø55 Max. dia. of through hole - mm - Ø40, *Ø46 Sub-tools Toolpost type - Gang type No. of sub tools - nos - 2 Sub-tool distance - mm - 55 Others Power capacity - kVA - 9
