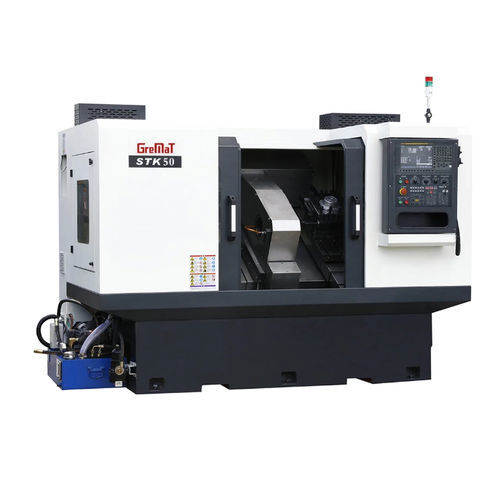

CNC drilling and milling machine STK50

horizontal3-axis

The dual end turning machine was developed specifically for the auto industry, and can be applied to other applications. This machine allows for double end cutting of parts that require machining on multiple surfaces of the part. Configurations of two to eight spindles can be configured for differing part turning requirements Capacity Machining dia. Range - mm - Ø20-70 Machining length range - mm - 200-700 Size of centering - mm - Ø2.5-6.3 Max milling depth.(one side) - mm - 5 Spindle Spindle nose - BT50 Tool type - Milling / Drilling Tool change type Manual Axis X/Z1/Z2 travel - mm - 250 X/Z1/Z2 rapid traverse - m/min - 15 Others Dimension (L×W×H) - mm - 3100×1750×2050
