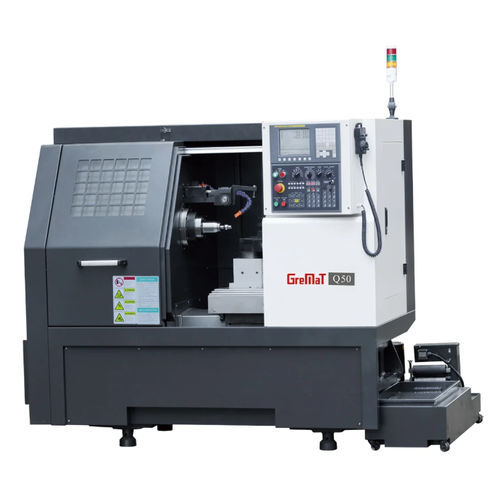

CNC turning center Q50 2-axisA2-5double-turret
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-5
- Turret
- double-turret
- Drive system
- servo-driven
- Diameter
50 mm
(1.97 in)- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Axe X
200 mm
(8 in)- Axe Z
150 mm, 320 mm
(6 in, 13 in)- Rapids on X
9 m/min
- Rapids on Z
9 m/min
- Nominal power
3 kW, 4 kW
(4.1 hp, 5.4 hp)- Overall lenght
2,600 mm
(102 in)- Overall width
1,410 mm
(56 in)- Overall height
1,900 mm
(75 in)- Weight
1,900 kg
(4,189 lb)
Description
Traditional spherical cutting CNC lathes used a traditional technology that featured a straight rack drive and hydraulic system. The result was that tolerances were difficult to maintain and surface finishes were not smooth.
The Q50 uses a circular rack and tooth combination, along with a servo motor to control table movement. The improved results include machining results that match programming specifications and mirror-fine finishes.
Capacity
Chuck/collet - Hydraulic collet
