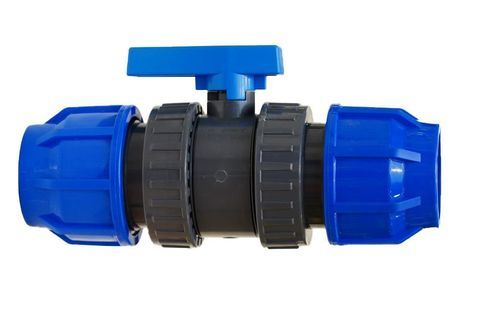

Ball valve BVDL-19 series

leverdoublefor pipes

Short description
Double union ball valve with quick coupling for P.E, made in UPVC. Suitable for compression connections on polyethylene pipes.

Product information

• Type: Compression Valves
• Brand: COMER by NEISCO
• Category: Compression Valves

Summary
Double union UPVC ball valve designed for quick connection to PE pipes using compression fittings. Available in multiple nominal sizes with specified dimensions for installation and selection.

Datasheet - Dimensions
Code | d | DN | L | Z | H | A | B | C | E | F | PN | Gr
BVDL19N0250 | 25 | 20 | 62.5 | 83 | 208 | 60 | 11 | 54 | 47 | 22 | 16 |
BVDL19N0320 | 32 | 25 | 60 | 65 | 185 | 67 | 14 | 62 | 55 | 25 | 16 | 390
BVDL19N0500 | 50 | 40 | 94 | 83 | 271 | 94 | 20 | 87 | 68 | 35 | 16 | 1070
BVDL19N0630 | 63 | 50 | 106 | 102 | 314 | 112 | 20 | 101 | 80 | 40 | 16 | 1720

Technical specifications

• Type: UPVC double union ball valve (compression valve) with quick coupling for P.E
• Brand: COMER by NEISCO
• Category: Compression Valves
• Available product codes / sizes: BVDL19N0250 (d25 / DN20), BVDL19N0320 (d32 / DN25), BVDL19N0500 (d50 / DN40), BVDL19N0630 (d63 / DN50)
• Material: UPVC (UPVC VALVES)
• Key dimensions per code provided in the datasheet table above (L, Z, H, A, B, C, E, F, PN, Gr)
