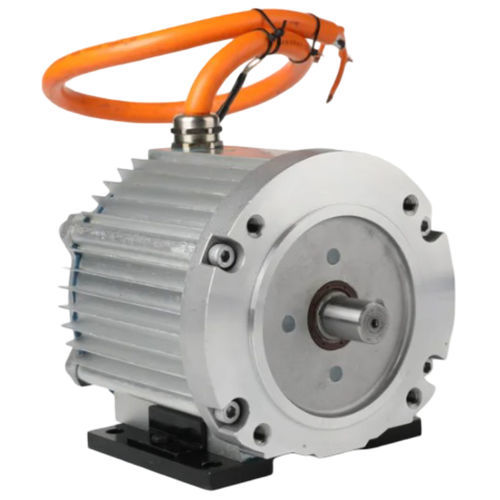

Synchronous motor EM822600 Vpermanent magnetIP67
Add to favorites
Compare this product
Characteristics
- Type
- synchronous
- Voltage
- 600 V
- Configuration
- permanent magnet
- Protection class
- IP67
- Applications
- industrial, for pump, for electric vehicles
- Power
1.5 kW
(2.04 hp)- Torque
4.8 Nm
(3.540298 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product overview
The EM822 is a permanent magnet synchronous motor (PMSM) engineered for air pump applications in industrial and vehicle environments. It delivers 1.5 kW at 3000 RPM and supports dual DC supply options (336VDC and 600VDC). The motor features IP67 protection for operation in harsh conditions and a compact 9 kg design suitable for integration into air pump assemblies.
Key highlights
Electrical specifications
Mechanical drawing
A mechanical drawing is provided with dimensions and mounting details to assist integration into pump housings and vehicle systems (drawing available as a product asset).
Technical specifications
The EM822 is a permanent magnet synchronous motor (PMSM) engineered for air pump applications in industrial and vehicle environments. It delivers 1.5 kW at 3000 RPM and supports dual DC supply options (336VDC and 600VDC). The motor features IP67 protection for operation in harsh conditions and a compact 9 kg design suitable for integration into air pump assemblies.
Key highlights
- Rated power: 1.5 kW at 3000 RPM
- Supply voltage: 336VDC / 600VDC
- Rated torque: 4.8 N·m
- Protection class: IP67 for dust and water resistance
- Optimized for electric vehicle air pump and industrial air pump systems
Electrical specifications
- Rated power: 1.5 kW
- Rated voltage: 336VDC / 600VDC
- Rated torque: 4.8 N·m
- Rated speed: 3000 RPM
- Protection class: IP67
- Weight: 9 kg
- Operating temperature: -40 to 80 °C
- Part number: EM822
Mechanical drawing
A mechanical drawing is provided with dimensions and mounting details to assist integration into pump housings and vehicle systems (drawing available as a product asset).
Technical specifications
- Model: EM822
- Motor type: Permanent Magnet Synchronous Motor (PMSM)
- Intended application: Air pump (suitable for electric vehicle applications)
- Mounting: as per mechanical drawing
- Weight and size optimized for compact pump assemblies
