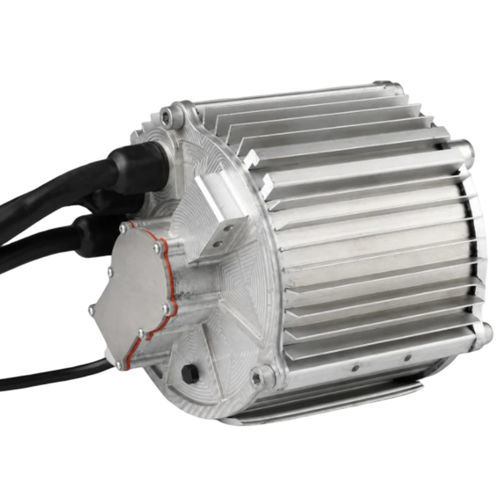

Synchronous motor EM819permanent magnetIP67for power steering
Add to favorites
Compare this product
Characteristics
- Type
- synchronous
- Configuration
- permanent magnet
- Protection class
- IP67
- Applications
- for power steering
- Power
1.5 kW
(2.04 hp)- Torque
22 Nm
(16.226367 ft.lb)- Rotational speed
1,500 rpm
(9,424.778 rad.min-1)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Overview
The EM819 is a permanent magnet synchronous motor (PMSM) engineered for electric power steering pump applications. Rated at 1.5 kW and 1500 RPM, it supports 336VDC or 600VDC supply, delivers up to 22 N·m peak torque and features IP67 protection. The compact 9 kg unit is designed for integration into automotive and off-highway steering systems.
Key Highlights
Electrical Specifications
Rated Power: 1.5 kW
Rated Voltage: 336VDC / 600VDC
Peak Torque: 22 N·m
Rated Speed: 1500 RPM
Protection Class: IP67
Weight: 9 kg
Operating Temperature: -40 to 80 °C
Part Number: EM819
Mechanical Drawing
Mechanical drawing available showing dimensions and mounting details for integration and installation of the PMSM power steering motor.
Technical specifications
The EM819 is a permanent magnet synchronous motor (PMSM) engineered for electric power steering pump applications. Rated at 1.5 kW and 1500 RPM, it supports 336VDC or 600VDC supply, delivers up to 22 N·m peak torque and features IP67 protection. The compact 9 kg unit is designed for integration into automotive and off-highway steering systems.
Key Highlights
- 1.5 kW rated power at 1500 RPM
- Dual supply options: 336VDC / 600VDC
- 22 N·m peak torque
- IP67 protection class
- Intended for electric power steering pump applications
Electrical Specifications
Rated Power: 1.5 kW
Rated Voltage: 336VDC / 600VDC
Peak Torque: 22 N·m
Rated Speed: 1500 RPM
Protection Class: IP67
Weight: 9 kg
Operating Temperature: -40 to 80 °C
Part Number: EM819
Mechanical Drawing
Mechanical drawing available showing dimensions and mounting details for integration and installation of the PMSM power steering motor.
Technical specifications
- Model / Part Number: EM819
- Rated Power: 1.5 kW
- Rated Speed: 1500 RPM
- Rated Voltage: 336VDC / 600VDC
- Peak Torque: 22 N·m
- Protection: IP67
- Weight: 9 kg
- Operating Temperature Range: -40 to 80 °C
- Application: Power steering pump / electric power steering systems
