Synchronous motor EM823
600 Vpermanent magnetIP67

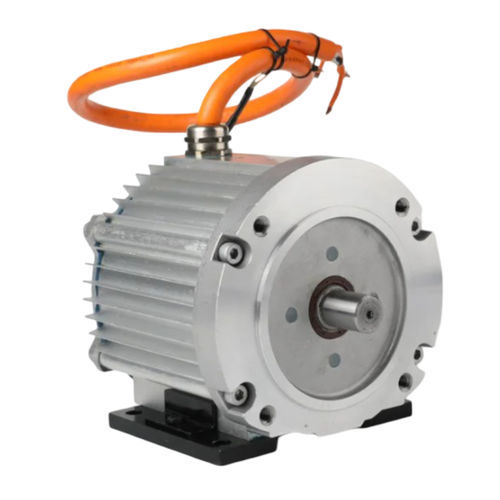

Synchronous motor - EM823 - NEOTON MOTOR - 600 V / permanent magnet / IP67
Synchronous motor - EM823 - NEOTON MOTOR - 600 V / permanent magnet / IP67
Add to favorites
Compare this product
Go to the NEOTON MOTOR website for more information

Characteristics

Type
synchronous
Voltage
600 V
Configuration
permanent magnet
Protection class
IP67
Applications
for pump, for electric vehicles
Power

2.2 kW
(2.99 hp)

Torque

7 Nm
(5.162935 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 80 °C
(176 °F)

Description

Product Overview
The EM823 is a permanent magnet synchronous motor designed for air pump applications. Rated 2.2 kW at 3000 RPM with 336VDC/600VDC supply and IP67 protection for operation in harsh environments. Suitable for electric vehicle air pump systems.

Key Highlights
  • Rated power: 2.2 kW at 3000 RPM
  • Supply voltage: 336VDC / 600VDC
  • Rated torque: 7 N·m
  • Protection class: IP67
  • Application: electric vehicle air pump compatible

Quick Specifications
Rated Power — 2.2 kW
Rated Voltage — 336VDC/600VDC
Rated Speed — 3000 RPM
Rated Torque — 7 N·m
Protection — IP67
Weight — 11.5 kg
Operating Temperature — -40~80°C
Part Number — EM823

Mechanical Drawing
Mechanical drawing image available on the product page for installation and mounting reference.

Technical specifications
  • Rated Power: 2.2 kW
  • Rated Voltage: 336VDC/600VDC
  • Rated Speed: 3000 RPM
  • Rated Torque: 7 N·m
  • Protection Class: IP67
  • Weight: 11.5 kg
  • Operating Temperature: -40~80°C
  • Part Number / Model: EM823
  • Application: Air pump applications (suitable for electric vehicle air pump use)
