Wet film thickness gauge 0220 series

stationarywet film combhexagonal

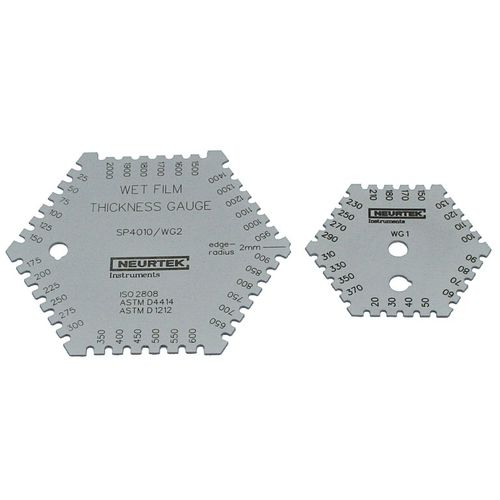

Wet Film Thickness Gauge WG is a hexagonal/octagonal precision measuring comb made of heavy stainless steel. The high-grade stainless steel will not be affected by acid or base elements. Models available for several different applications. FEATURES • Accurate and made of stainless steel make this comb a long-lasting and reusable measuring instrument. • Wide range of measurement. From 20 a 10.000 microns, which covers nearly al possibilities • Place a comb perpendicular to and touching the substrate. Hold the comb in position and wait a few seconds until the teeth are "wet." • Remove the comb from the film. • The wet film thickness lies between the biggest value "coated" or "wet" tooth and the smallest value "uncoated" or "dry" tooth value. Models available for several different applications: • 20 to 370 microns in 24 steps (6x4) for decorative paints and primers. • 25 to 2000 microns in 36 steps (6x6)for protective coatings and high solids. With edge grinding check (2mm). • 50 to 10000 microns in 71 steps (8x9)for extremely thick films such as floor coatings, fillers, fire, proofing, plaster, adhesives etc.
