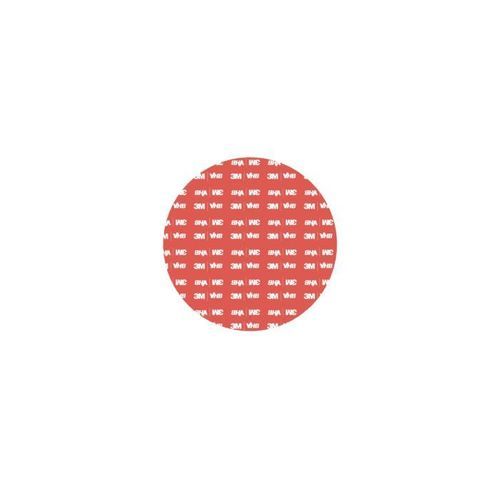

Mounting plate FIX
Add to favorites
Compare this product
Description
Overview
Adhesive mounting solution specially designed for NEXELEC detectors (to be used with BASE and BASE+ mounting bases). Enables installation of detectors without tools or drilling, simplifying deployments in constrained environments.
Key benefits
Quick installation
1 minute is sufficient to glue the adhesive mount and fit a detector.
Adhesive technology
Double-sided viscoelastic acrylic foam (3M adhesive fastener technology), solvent-free manufacturing, water- and temperature-resistant.
How to attach FIX (installation steps)
Designed for professionals
Adhesive mounting avoids drilling holes in walls and ceilings, offering time savings, reduced costs and less property damage compared with screw-and-dowel fixing.
Certified installation
Approved installation system providing a reliable, certified solution where mechanical fixing is technically constrained.
References
Reference | Packaging
S002-PRO | 100 pieces
Technical characteristics / specifications
Adhesive mounting solution specially designed for NEXELEC detectors (to be used with BASE and BASE+ mounting bases). Enables installation of detectors without tools or drilling, simplifying deployments in constrained environments.
Key benefits
- Tool-free installation: mount detectors without special tools or wall/ceiling drilling.
- Approved mounting device: designed for NEXELEC detectors certified EN14604 / EN50291 and NF292.
- Time-saving: faster than screw-and-dowel fastening, suitable for large-scale installations.
- Cost reduction: lowers installation costs and limits property damage.
- Safe for constrained sites: replaces screws and plugs where asbestos, pipes or cables are present.
- High retention: laboratory-tested double-sided viscoelastic acrylic foam with very high pull-out resistance.
Quick installation
1 minute is sufficient to glue the adhesive mount and fit a detector.
Adhesive technology
Double-sided viscoelastic acrylic foam (3M adhesive fastener technology), solvent-free manufacturing, water- and temperature-resistant.
How to attach FIX (installation steps)
- Peel off the white film.
- Bond FIX to the back of a NEXELEC BASE or BASE+ mounting base.
- Remove the red film.
- Apply strong pressure for 10 seconds to the chosen surface.
- Wait 30 seconds before snapping the detector onto its mounting base.
Designed for professionals
Adhesive mounting avoids drilling holes in walls and ceilings, offering time savings, reduced costs and less property damage compared with screw-and-dowel fixing.
Certified installation
Approved installation system providing a reliable, certified solution where mechanical fixing is technically constrained.
References
Reference | Packaging
S002-PRO | 100 pieces
Technical characteristics / specifications
- Adhesive type — Double-sided viscoelastic acrylic foam.
- Conditions of use — Indoor environment. Temperature: -30°C to +70°C. Humidity: 0% RH to 99% RH (non-condensing).
- Assembly — To be used exclusively with NEXELEC BASE and BASE+ detector bases. Apply only on smooth, clean, non-porous surfaces.
- Dimensions — 30 x 30 mm.
- Set contents — 100 adhesive fasteners (S002-PRO).
