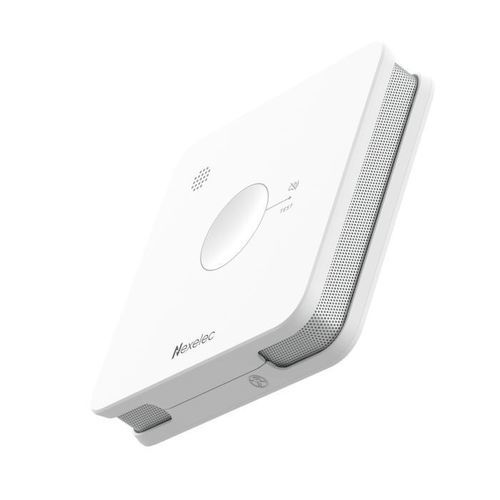

Photoelectric smoke detector GUARD+

wirelessfor indoor usefor fire safety applications

Overview
Connected smoke alarm GUARD+ combining photoelectric smoke detection with temperature and humidity sensing. Designed for professional deployments (landlords, building maintenance) with remote monitoring and remote maintenance capabilities. Supports up to 25 interconnected detectors and accessories and is available with LoRaWAN and Sigfox radio options.

Key features

• Connected: remote maintenance and real‑time alerts for faults, low battery and critical parameters.
• Interconnection: up to 25 interconnected detectors and accessories; one detection triggers all linked units.
• Multi‑parameter sensing: photoelectric smoke, temperature and humidity monitoring.
• Air 360° technology: large rear openings for fast ambient air analysis.
• Reduced false alarms: electronic self‑compensation for dust and integrated insect barrier.
• Audible alarm: 85 dB at 3 m; discreet LED indicator in standby, bright in alarm.
• Anti‑tear protection: removal alert; lockable mounting base available for rental properties.
• Large front touch button: test, silence (3 min) and control; 8‑hour fault‑beep delay.
• Digital maintenance traceability: NFC‑recorded maintenance certificate, digital logbook and QR’SAFE guidance.

Set contents

• 1 detector
• 1 CR123 battery (replaceable)
• 1 BASE+ mounting base
• 2 nylon screws and plugs
• 1 user manual

Additional product functions and management

• Compatibility with REMOTE remote control and ALERT kit for deaf/hard‑of‑hearing (strobe + vibrating cushion).
• NAVIXIS digital logbook: installation and maintenance traceability, API/connectors and centralized fleet monitoring.
• QR’SAFE label to provide occupant instructions and maintenance info via QR code.

Technical information summary (see specifications block below for detailed values)
Photoelectric smoke detection (Tyndall effect). Temperature and humidity sensing included. Dual radio options (LoRaWAN and Sigfox). Wall or ceiling mounting. Dimensions 105 x 105 x 35 mm. Battery life design: 5 years with replaceable CR123 included. EN14604 certification.

Specifications

• Smoke detection: Photoelectric (optical by diffused light — Tyndall effect).
• Temperature: resolution 0.1°C; accuracy ±0.2°C; range -30°C to +70°C.
• Humidity: resolution 0.5% RH; accuracy ±2% RH; range 0–100% RH.
• Connectivity: LoRaWAN and Sigfox (dual compatibility on some references).
• Set contents: 1 detector, 1 CR123 battery, 1 BASE+ base, 2 screws and plugs, user manual.
• Dimensions: 105 x 105 x 35 mm.
• Operating environment: indoor; temperature -10°C to +50°C; humidity 0%–99% RH (non‑condensing).
• Mounting: wall or ceiling (approved for wall mounting 30–60 cm below ceiling).
• Warranty: 5 years (commercial warranty, conditions apply).
• Certification: EN14604; CE.
• Reference example: X860LS — battery life: 5 years; radio: LoRaWAN - Sigfox.
