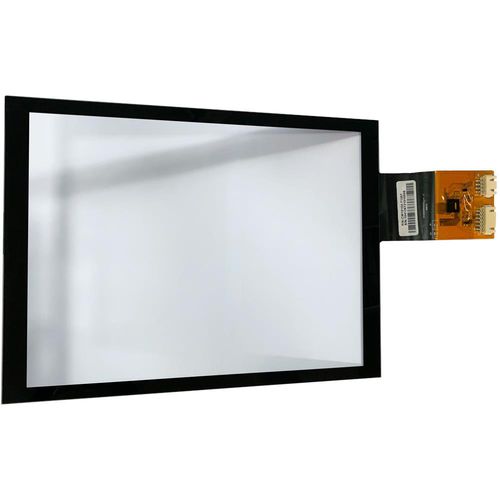

Display module with PCT touch screen TP-104P2A0CW-001

10.4"RS-232

It is bonded with a 0.7mm, 7H hardness, Soda-lime Tempered cover lens, complies IK rating 07. The touch controller IC ,EETI 80H84, is bonded on the FPC (COF). The structure of TP-104P2A0CW-001 is “G/G”, optional AG coating. It is designed by Nextech Co.,Ltd. Specifications Input Method - Finger or Nextech active touch stylus. Average Transmittance - >85% Accuracy - 2.5mm each target, 10% Jitter Interface - USB Dimensions Outline of Cover Lens - 239.02x176.60(±0.2) mm Viewing Area - 212.70x158.82(±0.2) mm Active Area - 212.20x159.32(±0.2) mm Thickness of Cover Lens - 0.7(±0.2) mm Total Thickness - 2.7(±0.2) mm Environmental Characteristic - Temperature - Humidity Operating - -20~70℃ - 0~90%RH Storage - -30~80℃ - 0~90%RH
