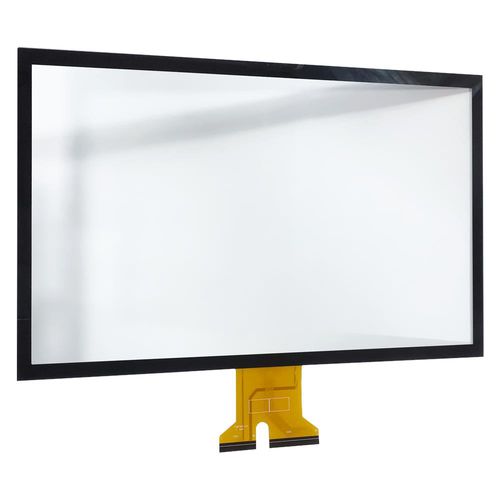

The TP-156P0A0GC-001 is a Projected Capacitive touch panel, it supports 10 points multi-touch.
It is bonded with a 0.7mm, 7H hardness, Soda-lime Tempered cover lens, complies IK rating 07.
The structure of TP-156P0A0GC-001 is “G/G”, optional AG coating.
It is designed by Nextech Co.,Ltd.
Specifications
Input Method - Finger or Nextech active touch stylus.
Average Transmittance - >85%
Accuracy - 2.5mm each target, 10% Jitter
Suggested Related Touch Controller - EETI 84H5680 Series.
Dimensions
Outline of Cover Lens - 365.53x216.84(±0.3) mm
Dimensions of Sensor - 363.53x214.84(±0.3) mm
Viewing Area - 346.06x195.49(±0.3) mm
Active Area - 346.06x195.49(±0.3) mm
Thickness of Cover Lens - 2.0(±0.3) mm
