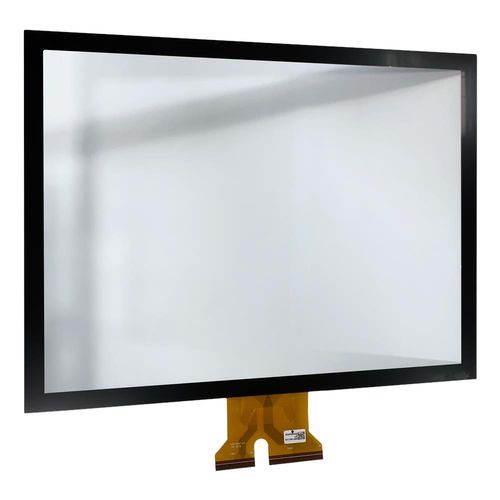

Display module with PCT touch screen TP-150P0A0GC-001

15"RS-232

It is bonded with a 1.8mm, 7H hardness, Soda-lime Tempered cover lens, complies IK rating 07. The structure of TP-150P0A0GC-001 is “G/G”, optional AG coating. It is designed by Nextech Co.,Ltd. Specifications Input Method - Finger or Nextech active touch stylus. Average Transmittance - >85% Accuracy - 2.5mm each target, 10% Jitter Interface - USB Dimensions Outline of Cover Lens - 330.5x254.5(±0.2) mm Viewing Area - 305.0x229.0(±0.2) mm Active Area - 305.0x229.0(±0.2) mm Thickness of Cover Lens - 1.8(±0.2) mm Total Thickness - 2.7(±0.2) mm Environmental Characteristic - Temperature - Humidity Operating - -20~70℃ - 0~90%RH Storage - -30~80℃ - 0~90%RH
