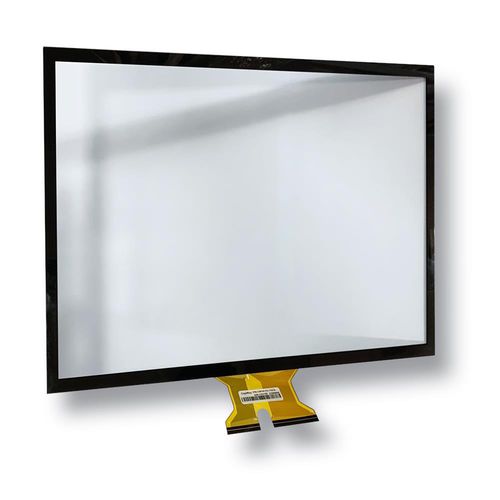

Display module with PCT touch screen TP-170P0A0CW-001

17"RS-232

The TP-170P0A0CW-001 is a Projected Capacitive touch panel, it supports 10 points multi-touch. It is bonded with a 0.7mm, 7H hardness, Soda-lime Tempered cover lens, complies IK rating 07. The structure of TP-170P0A0CW-001 is “G/G”, optional AG coating. It is designed by Nextech Co.,Ltd. Specifications Input Method - Finger or Nextech active touch stylus. Average Transmittance - >85% Accuracy - 2.5mm each target, 10% Jitter Suggested Related Touch Controller - EETI 84H5680 Series. Dimensions Outline of Cover Lens - 359.50x298.10(±0.2) mm Viewing Area - 339.90x272.40(±0.2) mm Active Area - 340.40x272.90(±0.2) mm Thickness of Cover Lens - 0.7(±0.15) mm Environmental Characteristics Item - Temperature - Humidity Operating - -20~70℃ - 0~90%RH Storage - -30~80℃ - 0~90%RH
