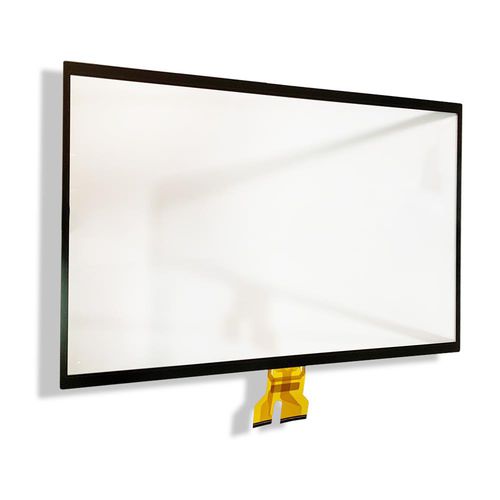

Display module with PCT touch screen TP-238P0A0CW-001

23.8"RS-232

It is bonded with a 1.8mm, 7H hardness, Soda-lime Tempered cover lens, complies IK rating 07. The structure of TP-238P0A0CW-001 is “G/G”, optional AG coating. It is designed by Nextech Co.,Ltd. Specifications Input Method - Finger or Nextech active touch stylus. Average Transmittance - >85% Accuracy - 2.5mm each target, 10% Jitter Interface - USB Dimensions Outline of Cover Lens - 544.00x326.00(±0.3) mm Dimensions of Sensor - 542.64x316.46(±0.3) mm Viewing Area - 528.24x297.86(±0.3) mm Active Area - 530.64x300.46(±0.3) mm Thickness of Cover Lens - 1.8(±0.2) mm Total Thickness - 2.75(±0.2) mm Environmental Characteristic - Temperature - Humidity Operating - -20~70℃ - 0~90%RH Storage - -30~80℃ - 0~90%RH
