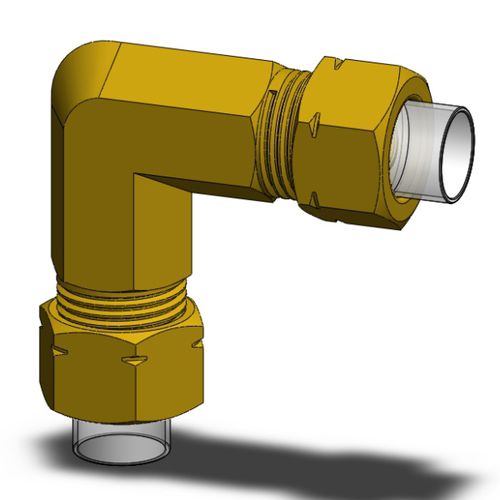

Union fitting CNHULhydrauliccompression90° angle
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- compression
- Configuration
- 90° angle
- Norms
- ISO
- Other characteristics
- union
- Diameter
Max.: 24 mm
(0.945 in)Min.: 4 mm
(0.157 in)- Operating pressure
Max.: 50 bar
(725.19 psi)Min.: 0 bar
(0 psi)
Description
Connections:
M5,G1/8,G1/4,G3/8,G1/2,G3/4
R1/8,R1/4,R3/8,R1/2,R3/4
N1/8,N1/4,N3/8,N1/2,N3/4
G=BSPP Conform ISO 228
R=BSPT Conform ISO 7
N=NPT Conform SAE AS 71051:1999
Commprise fitting sealing effect nested perfect,with easy to install,compact appearance of the characteristics of a variety of material applicable to the management of products.The type of fittings with excellent pressure resistance.Pipediameter and materials in accordance with different types if fittings in the maximum working pressure up to 50 bar
