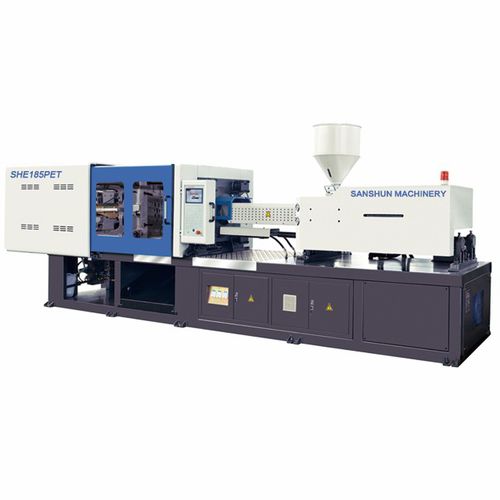

Horizontal injection molding machine SHE185PET

hydraulicfor PETtoggle

Sanshun Machinery offers Special series of Injection Molding Machines for PET Preform making. PET Special screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better products. Pressure Synchronization System with pressure holding and charge at same time gives the productivity improvement 15%-25%. The Preform which produced by our PET Preform Injection molding machine can stand temperature over 100 degree. With high strength, good transparency and low production costs. Beside an obvious energy saving due to a lower PET melting temperature, preforms by compression require less heating in the blowing phase because the crystals of material are differently oriented. Advantages Heat Transfer systems, environmental, low noise, quick response, high-efficiency, high-speed automation, stable weight consistency, low power consumption, full automation of the process CLAMPING UNIT - 　 - 　 Toggle stroke - mm - 445 Mould Thickness - mm - 190-470 Space between tie-bars - mm - 490X464 Ejector stroke - mm - 155 Ejector tonnage - KN - 70 Ejector number - Piece - 5 Hole Diameter - mm - 125 OTHERS - 　 - 　 Heat power - KW - 15.5 Max. pump pressure - MPa - 16 Pump motor power - KW - 18.5 Machine dimension - m - 5.4X1.6X1.75 Machine weight - t - 6.2 Oil tank capacity - L - 270
