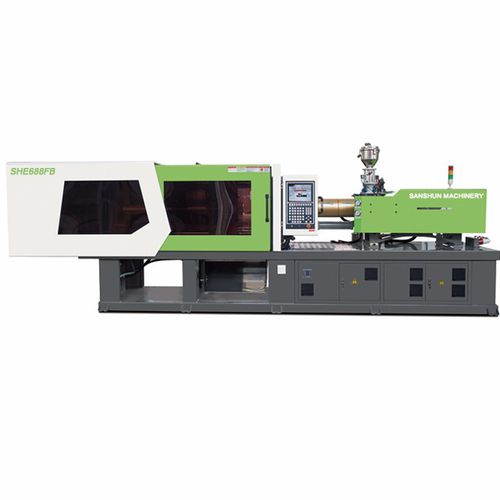

Horizontal injection molding machine SHE688 FB

hydraulictoggle

Sanshun Machinery offers Special series of Injection Molding Machines for Plastic Crates such as Vegetable crates, Milk crates, Fruit crates, Soda crate, Bread crates etc. We have customized our machines especially for those whose sole purpose is crates. Special designed screw & barrel, which makes perfect plasticizing effect and faster charging is capable for large shot weight. Upgraded hydraulic system ensures high injection speed and lowers production cycle. This machine can use PE, PP, PS material to produce plastic crate. Plastic crate box is made of polyethylene PE or polypropylene PP production, safe and non-toxic, which HDPE material production is relatively soft, toughness, is generally the first choice for home storage. Advantages Energy saving, Easy plastics processing operations. , quick response, environmental, Improve Production efficiency, Specially Designed Screw CLAMPING UNIT - 　 - 　 Toggle stroke - mm - 905 Mould Thickness - mm - 380-920 Space between tie-bars - mm - 915X914 Ejector stroke - mm - 260 Ejector tonnage - KN - 180 Ejector number - Piece - 13 Hole Diameter - mm - 250 OTHERS - 　 - 　 Heat power - KW - 42.5 Max. pump pressure - MPa - 16 Pump motor power - KW - 30+37 Valve Size - mm - Cartridge Valve Machine dimension - m - 10.2X2.2X2.6 Machine weight - t - 32 Oil tank capacity - L - 1100
