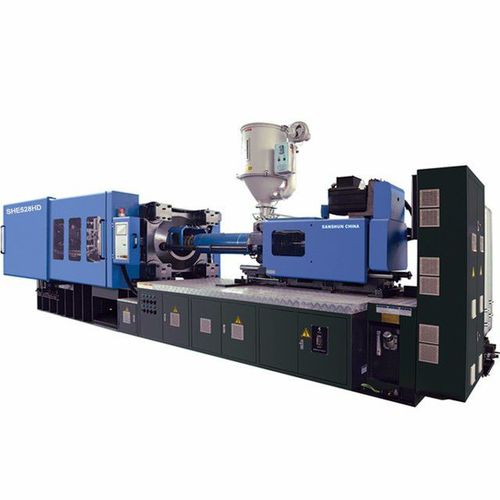

Horizontal injection molding machine SHE528-HD

hydraulicnylontoggle

Nylon cable tie injection molding machine is one of our flagship model machine. Sanshun made specialized machine because the machine is set up specifically to run nylon ties, so the tooling, the hot runners, the barrel and screw will be set up to run Nylon 6, the drier will keep the nylon to just the right moisture content, the take off equipment will be what's needed, the statistical process controller will be tuned for nylon cable ties etc. Advantages Short cycle time, higher productivity, high-efficiency, low noise, quick response, high-speed automation, stable weight consistency, low power consumption, full automation of the process CLAMPING UNIT - 　 - 　 Toggle stroke - mm - 90-650 Mould Thickness - mm - 200-800 Space between tie-bars - mm - 720X720 Ejector stroke - mm - 218 Ejector tonnage - KN - 125 Ejector number - Piece - 13 Hole Diameter - mm - 110 OTHERS - 　 - 　 Heat power - KW - 27 Max. pump pressure - MPa - 16 Pump motor power - KW - 85 Machine dimension - m - 9.1X2.1X2.4 Machine weight - t - 24 Oil Tank Caacity - L - 900
