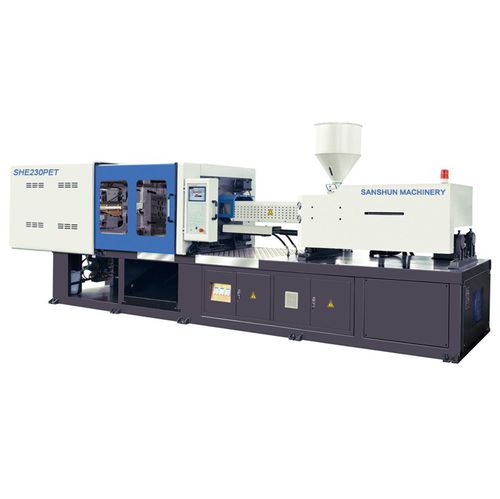

Horizontal injection molding machine SHE230V-PET

hydraulicfor PETpreform

Sanshun Machinery offers Special series of Injection Molding Machines for PET Preform making. PET Special screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better products. Pressure Synchronization System with pressure holding and charge at same time gives the productivity improvement 15%-25%. The Preform which produced by our PET Preform Injection molding machine can stand temperature over 100 degree. With high strength, good transparency and low production costs. Beside an obvious energy saving due to a lower PET melting temperature, preforms by compression require less heating in the blowing phase because the crystals of material are differently oriented. Advantages Heat Transfer systems, environmental, low noise, quick response, high-efficiency, high-speed automation, stable weight consistency, low power consumption, full automation of the process CLAMPING UNIT - 　 - 　 Toggle stroke - mm - 510 Mould Thickness - mm - 200-530 Space between tie-bars - mm - 535X533 Ejector stroke - mm - 155 Ejector tonnage - KN - 80 - 90 - 100 Hole Diameter - mm - 160 OTHERS - 　 - 　 Heat power - KW - 13.7 18.5 18.5 Max. pump pressure - MPa - 16 Pump motor power - KW - 30 - 37 - 37 Valve Size - mm - 16 Machine dimension - m - 5.8X1.8X2.0 Machine weight - t - 6.8
