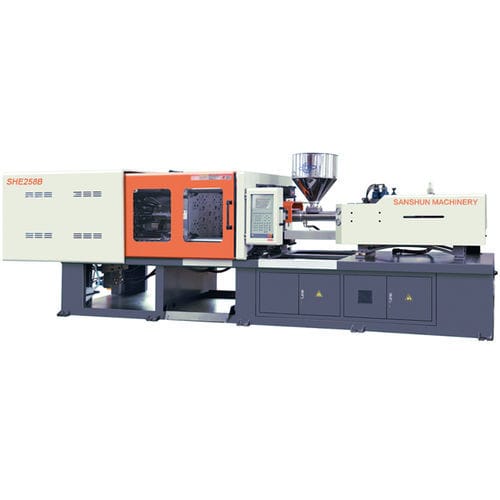

Horizontal injection molding machine SHE258B

hydraulicfor bakelitetoggle

Sanshun Machinery manufacturing special Injection molding machines for Bakelite products. Bakelite has a number of important properties. It can be molded very quickly, decreasing production time. Moldings are smooth, retain their shape and are resistant to heat, scratches, and destructive solvents. It is also resistant to electricity and prized for its low conductivity. It is not flexible. These characteristics made Bakelite particularly suitable as a molding compound. For Bakelite injection molding, the barrel temperature is set to 70-90'C to heat (with screw shear) the raw materials flowing. The screw is only for compressing and delivering the material into the mold, without melting it. Mold is heated to a temperature (180'C, for instance) to cure the raw materials Screw configuration - The compression ratio of the screw for bakelite is 1:1 whereas for thermoplastics it's about 1:3-1:4.5 Process - Molding of thermoplastics involve melting whereas in the molding of bakelite only the fusing takes place between particles and no melting is involved. Advantages Specially designed Screw & Barrel, High Efficiency, Automatic Mould adjustment, Energy Saving, Easy processing operations, Less production time. CLAMPING UNIT - 　 - 　 Toggle stroke - mm - 570 Mould Thickness - mm - 220-580 Space between tie-bars - mm - 580x580 Ejector stroke - mm - 160 Ejector tonnage - KN - 70 Ejector number - Piece - 9 Hole Diameter - mm - 160 OTHERS - 　 - 　 Max. pump pressure - MPa - 16 Pump motor power - KW - 25 Machine dimension - m - 6.3X1.8X2.0 Machine weight - t - 8 Oil tank capacity - L - 350
