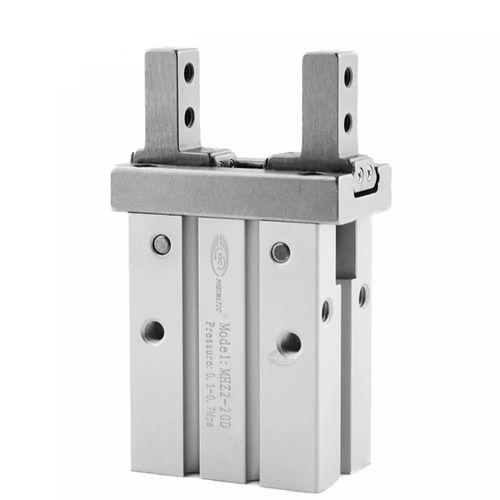

Parallel gripper cylinder MHZ2 Seriespneumaticdouble-actingsingle-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Configuration
- double-acting, single-acting
- Applications
- for parallel grippers
- Other characteristics
- with integrated guides
- Bore
Max.: 40 mm
(1.57 in)Min.: 6 mm
(0.24 in)- Pressure
Max.: 0.7 MPa
Min.: 0.13 MPa
- Operating Temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Repeatability
0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)
Description
The MHZ2 Series gripper has an integrated linear guide for high rigidity, positioned with two dowel pins to prevent guide slippage. It has mounting versatility on three sides, in five configurations. Available in single acting (N.O., N.C.) and double acting.
