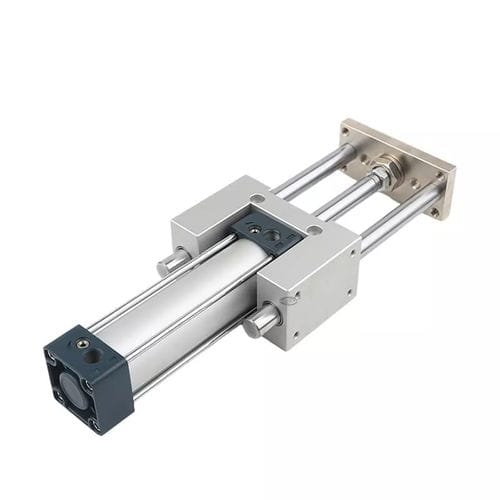

Cylinder with guide frame TSAI Series

pneumaticwith guided piston roddouble-acting

TSAI series cylinders with guide frame is a new type of cylinder that combines a guide frame and a standard cylinder. Double guide rods guided by brass bearings or linear bearings, with high resistance to torque and lateral loads. Can be combined with standard air cylinders of various bore sizes. Product Feature 1. Double Rod Guide Design Brass bearing: It is suitable for the action that has radial load resistance with greater torsion stiffness. Linear bearing: It is suitable for push-up action, or where high precision and high load capacity are required, especially for occasions requiring low friction. 2. The special design of the guide frame body provides a multi-directional mounting 3. The buffer adjustment of cylinder is smooth and steady. 4. According to the actual use requirements, combined with sensor holder can to change the sensor installation location.
