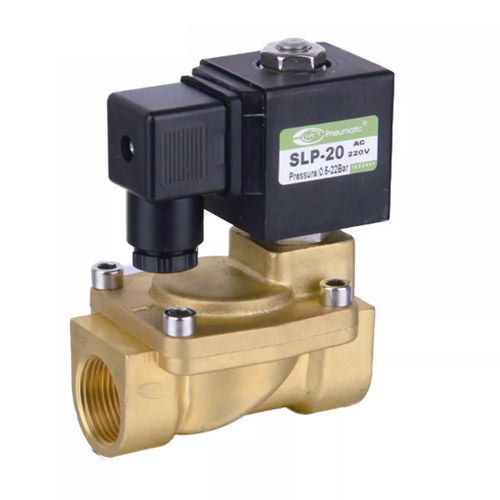

Large-diameter solenoid valve SLP Seriesdirect-operated2/2-waynormally closed
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2/2-way
- Function
- normally closed
- Medium
- for water, air, for steam
- Body
- threaded, flange, stainless steel, brass
- Process connection
- G 1/4, G 1/2, G 3/4, G 3/8, G 1/8, G 1, G 1 1/2, G 2, G 1 1/4
- Other characteristics
- with seal, large-diameter
- Valve plug seal material
- EPDM, NBR
- DN
Max.: 50 mm
(1.969 in)Min.: 3 mm
(0.118 in)- Voltage
12 V, 24 V, 110 V, 230 V, 240 V
- Temperature
Max.: 130 °C
(266 °F)Min.: 0 °C
(32 °F)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0 bar
(0 psi)
Description
SLP solenoid valve maintains a high working pressure of 16 bar, which is much higher than the usual 8 bar.
The connection size is from 1/8″ to 2″. A flange connection is not necessary for stainless steel.
According to different industry requirements, the SLP series solenoid valves offer 7 different voltage coils for your application.
Product Feature
1. 2/2 way normally closed solenoid valve, close when de-energized, opens when energized.
2. Stainless steel valve and brass valve can be normally closed and normally open, with NBR seal, EPDM seal and VITON seal, applicable to any media such as air, gas, water, hot water, liquid, etc.
3. Voltage: DC12v, DC24v, AC24v, AC110v, AC220v, AC230v, AC240v. According to requirements to choose, also can fix Germania Nass coil.
Catalogs
SLP Series
2 Pages
General Solenoid Valves
25 Pages
