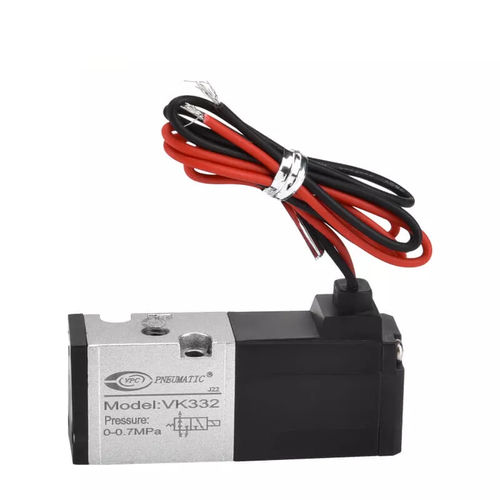

Poppet pneumatic directional control valve VK300 Series

solenoid-operateddirect-operated3/2-way

The VK series is available as 3 and 5 port solenoid, direct poppet, rubber seal valve. It meets copper free specifications as all parts in contact with fluids are made of non-copper materials. A compact valve (width 18 x length 68mm), the VK series is available in a body ported or base mounted style. Product Feature 1. Universal porting: Available for N. C. valve, N .O. valve, divider valve, selector valve, etc. 2. Compact: Width 18×Length 63 (mm) 3. Low power consumption: DC 4W (Standard type), DC 2W (Low wattage type) 5. Suitable for use in vacuum applications -101.2kpa 6. Suitable for use in copper-free applications The portions that come in contact with flfluids do not contain copper, thus enabling the standard product to be used as is.
