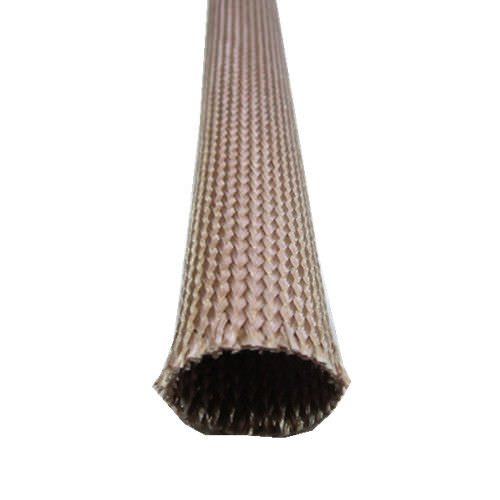

Insulating sleeve

braidedfor cablesfiberglass

Fiberglass Sleeving is a braided fibreglass sleeving treated at a high temperature to mould, dye color then impregnated with insulation resin. It is used in high temperature, low voltage applications and wherever repeated flexing or temperature extremes prohibit the use of other materials. Constructed from a smooth glass fiber yarn, braided at high yield angles to allow for approximately 25% expansion and contraction. Features Thermal class: C Operating temperature: -30℃–350℃ ；Short time peaks at 400℃ Breakdown voltage: 0.5 KV to 1.5 KV Appearance: round and smooth surface Standard color: black & light brown, others on request Packaging details For roll packaging: -diameter 0.5 mm to 4 mm: 200 m -diameter 5 mm to 20 mm: 100 m -diameter 22 mm to 24 mm: 50 m -diameter 26 mm to 30 mm: 25 m Note: other length can be negotiated. Inner packing: plastic bag Outer packing: cartons(dimension: 33X33X57cm or 40X40X60cm)
