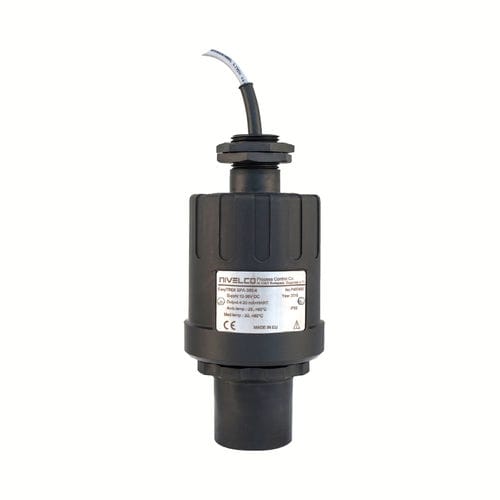

ultrasonic level transmitter / for liquids / 2-wire / temperature-compensated
EasyTREK

{{requestButtons}}

Characteristics

  • Technology:

    ultrasonic

  • Medium:

    for liquids

  • Other characteristics:

    4-20 mA, 2-wire, explosion-proof, ATEX, temperature-compensated, HART, IP68

  • Applications:

    for storage tanks, for the food and beverage industry, for industrial applications

  • Level range:

    Min.: 0.2 m (0'07")

    Max.: 25 m (82'00")

  • Process pressure:

    Min.: 0.5 bar (7.25 psi)

    Max.: 3 bar (43.51 psi)

  • Process temperature:

    Min.: -30 °C (-22 °F)

    Max.: 90 °C (194 °F)

Description

Product properties
- 2-wire transmitter
- Non-contact level metering
- Narrow 5° beam angle
- Excellent signal processing via QUEST+ software
- Temperature compensated
- Secondary lightning protection
- 32-point linearisation
- PP, PVDF, PTFE housing and transducers
- Explosion-proof models
- Level and volume measurement
- Open channel flow measurement
- Fail-safe indication
- For challenging applications such as vapour / fume stirrer and foam with liquids

Applications
- Level measurement of liquids, wastewater, aggressive chemicals and slurries
- Agriculture
- Construction materials
- Chemical industry
- Food and beverage
- Oil industry
- Paper mill
- Water / wastewater industry
