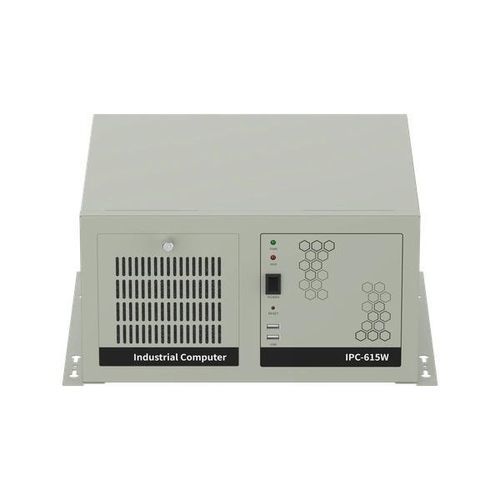

Box PC IPC-615W series

towerwall-mountedIntel® Pentium

Overview The IPC-615W Series is a family of tower and wallmount industrial PCs supporting multiple Intel® chipsets (C236, H110, Z390, Q170, H420E, Q470, H610, Q670) and 6th–14th Gen Intel® Celeron®, Pentium® and Core™ processors depending on model. Configurations include DDR4 memory (select Q670 variants offer optional DDR5), multiple PCIe x16/x4/x1 and legacy PCI slots, and a range of display outputs (VGA, HDMI, DisplayPort) with asynchronous dual- or triple-display support. Storage options include M.2, mSATA and multiple SATA3.0 interfaces; RAID is available on selected platforms. Network and I/O include dual Gigabit Ethernet, multiple USB ports and RS232/RS485 serial interfaces. Newer H610 and Q670 models introduce PCIe Gen4 expansion for higher-bandwidth vision, AI and data-processing applications.

Key features

• Tower and wallmount industrial PC family covering chipsets C236, H110, Z390, Q170, H420E, Q470, H610, Q670
• Supports Intel® 6th–14th Gen Celeron®, Pentium®, Core™ processors (model-dependent)
• Memory: DDR4 across most models; optional DDR5 on select Q670 configurations; many models up to 64 GB
• Expansion: multiple PCIe x16/x4/x1 and legacy PCI slots; select H610/Q670 models provide PCIe Gen4
• Display outputs: VGA, HDMI, DisplayPort with asynchronous dual- or triple-display capability (model-dependent)
• Storage: M.2, mSATA, multiple SATA3.0 ports; RAID supported on selected variants
• Connectivity: dual Gigabit Ethernet, multiple USB ports, RS232/RS485 for industrial equipment
• Power input options: AC 220V or AC 100–240V depending on configuration

Application Areas

• Machine vision inspection and automated optical inspection (AOI)
• Multi-camera vision systems and frame-grabber integration
• Edge AI inference and AI-assisted inspection
• Factory automation, centralized machine control and PLC integration
• CNC, laser cutting, engraving and machine-tool control
• Motion control and industrial robotics
• Data acquisition (DAQ) and condition monitoring
• Automated test equipment and production testing
• SCADA, control-room and production monitoring systems
• Industrial edge computing and OT data processing
• Legacy PCI equipment modernization and retrofit
• OEM machine building and custom industrial computing platforms

Product Reference Table IPC-615W-C236 | Intel® C236 | 6th–9th Gen | Multiple PCIe + PCI | Triple display | M.2 + SATA; RAID supported | Machine vision, DAQ, automation, legacy PCI integration
IPC-615W-H110 | Intel® H110 | 6th–9th Gen | PCIe + multiple PCI | Dual display | M.2/mSATA + SATA | General automation, machine control, equipment retrofit
IPC-615W-Z390 | Intel® Z390 | 6th/8th/9th Gen | PCIe + 4 PCI | Triple display | mSATA + SATA; RAID capable | Legacy PCI systems, DAQ, motion control, test equipment
IPC-615W-Q170 | Intel® Q170 | 6th–9th Gen | 5 PCIe + 2 PCI | Triple display | M.2 + SATA; RAID supported | Multi-card vision, automation, DAQ, machine control
IPC-615W-H420E | Intel® H420E | 10th/11th Gen | 4 PCIe + 3 PCI | Dual display | M.2 + SATA | Modern automation, vision, control, industrial computing
IPC-615W-Q470 | Intel® Q470 | 10th/11th Gen | 5 PCIe + 2 PCI | Triple display | M.2 + SATA; RAID supported | Machine vision, AI, DAQ, high-performance automation
IPC-615W-H610 | Intel® H610 | 12th–14th Gen | PCIe Gen4 + PCI | Triple display | M.2 + SATA | High-performance vision, edge computing, machine control
IPC-615W-Q670 | Intel® Q670 | 12th–14th Gen | 5 PCIe Gen4 + 2 PCI | Triple display | PCIe M.2 + SATA; RAID supported | AI vision, multi-camera inspection, high-speed DAQ, advanced automation

Technical specifications

• Form factor: tower and wallmount industrial PC chassis (expandable)
• Supported chipsets: C236, H110, Z390, Q170, H420E, Q470, H610, Q670 (model-dependent)
• CPU support: Intel® 6th–14th Gen Celeron®, Pentium®, Core™ (varies by model)
• Memory: DDR4 standard; many models up to 64 GB; DDR5 optional on select Q670
• Expansion slots: combinations of PCIe x16/x4/x1 and legacy PCI; select models with PCIe Gen4 (H610, Q670)
• Display: VGA, HDMI, DisplayPort; asynchronous dual- or triple-display (model-dependent)
• Storage: M.2, mSATA, multiple SATA3.0 ports; RAID available on selected platforms
• Networking: Dual Gigabit Ethernet; additional options by configuration
• I/O: Multiple USB ports, RS232/RS485 serial interfaces; other I/O per motherboard
• Power: AC 220V or AC 100–240V options depending on model/configuration
• Target applications: machine vision, automation, DAQ, legacy PCI integration, edge AI, OEM systems
• Note: Verify model-specific capabilities (slot counts, CPU generation support, RAID and memory type) per chosen IPC-615W variant.
