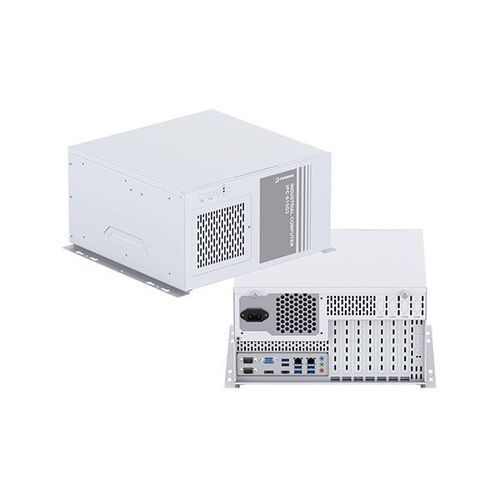

Edge AI PC IPC-615G3 series

boxEDGEtower

Overview
The IPC-615G3 Series is a tower/wall-mount industrial PC platform designed for modular expansion and a wide range of Intel® processors. Models cover multiple chipsets (H110, Q170, Q470, H420E, H610, Q670) and support DDR4 or DDR5 SO-DIMM memory up to 64GB, multiple PCIe Gen3/Gen4 and legacy PCI slots, triple independent display outputs, SATA RAID and M.2 storage options, dual GbE LAN, USB 3.x and RS232/RS485 I/O, onboard watchdog and audio, and AC 100–240V input. The chassis is a steel tower/wall-mount design suitable for GPU, frame grabber and control card integration.

Application Areas
The IPC-615G3 Series is intended for machine vision inspection, industrial automation, AI edge inference, robotic and AMR control, CNC and laser cutting systems, high-speed data acquisition, GPU-accelerated computing, control cabinets, vision workstations and intelligent platforms in smart factories.

Product Reference Table
Model | Chipset | CPU Support | Memory | PCIe / PCI Slots | LAN | Display | Storage
IPC-615G3-C236 | Intel C236 | 6th-9th Gen | DDR4 up to 64GB | 5 PCIe, 2 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA, M.2
IPC-615G3-H110 | Intel H110 | 6th-9th Gen | DDR4 up to 64GB | 4 PCIe, 3 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA
IPC-615G3-H420E | Intel H420E | 10th-11th Gen | DDR4 up to 64GB | 4 PCIe, 3 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA
IPC-615G3-H610 | Intel H610 | 12th-13th Gen | DDR4 up to 64GB | 3 PCIe, 3 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA, M.2
IPC-615G3-Q170 | Intel Q170 | 6th-9th Gen | DDR4 up to 64GB | 5 PCIe, 2 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA (RAID), M.2
IPC-615G3-Q470 | Intel Q470 | 10th-11th Gen | DDR4 up to 64GB | 5 PCIe, 2 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA (RAID), M.2
IPC-615G3-Q670 | Intel Q670 | 12th-14th Gen | DDR5 up to 64GB | 5 PCIe, 2 PCI | 2 x GbE | VGA, HDMI, DP | 2 x SATA (RAID), M.2

Key features & options

• Supports Intel® 6th–14th Gen Core-i / Celeron / Pentium CPUs (chipset-dependent)
• Memory: DDR4 or DDR5 SO-DIMM configurations, up to 64GB
• Expansion: Multiple PCIe Gen3/Gen4 slots and legacy PCI slots for GPUs, frame grabbers and control cards
• Triple independent display outputs: VGA, HDMI, DisplayPort; 4K output on compatible platforms
• Storage: M.2 SSD support plus SATA (including RAID on select models)
• Networking: Dual Gigabit Ethernet (2 x GbE)
• I/O: Multiple USB 3.0/3.2 ports and RS232/RS485 COM ports; onboard audio and watchdog
• Power: AC 100–240V input
• Chassis: Steel tower / wall-mount design
• Targeted for AI vision, machine vision inspection, automation, robotic control and GPU-accelerated tasks
